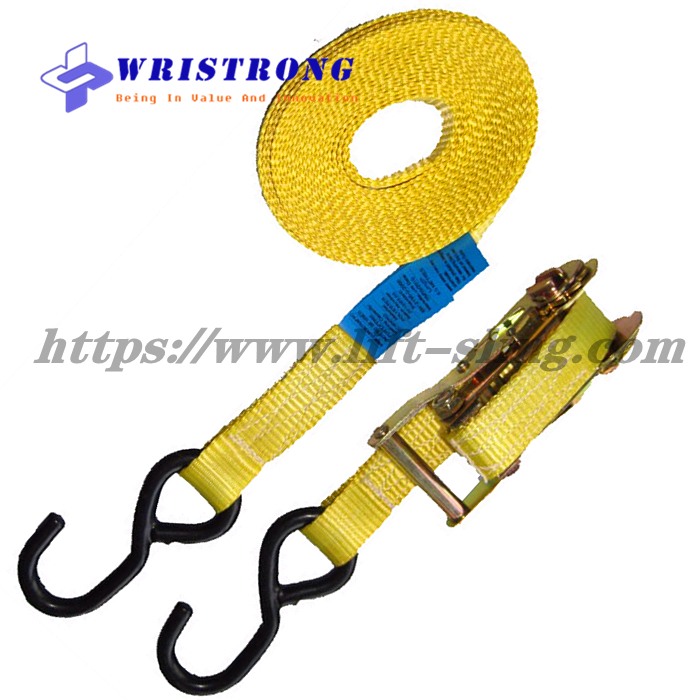

1 Inch Ratchet Straps W/S-Hooks
Please Note:
If you have any special requirements, you can contact us bellow and we will reply you as soon as possible.
Request A QuoteProduct Specification:
1 Inch Ratchet Straps W/S-Hooks | Lashing Straps | Hot Selling
These 1" wide ratchet straps usually come with 1500lbs whole assembly break strength and work load limit 500lbs. Standard length of the whole ratchet assembly will be 15' or 20', but if you would like to order any special length, we can produce as well.
All the parts of our ratchet straps are manufactured by ourselves, which make us easy to control the qualities of ratchet straps. We have our own ratchet tie down straps woven workshops, ratchet and hooks workshops, stitching workshops, packing workshops,etc. So You can buy from us with factory direct prices and high quality guaranteed.
Description Of 1" Ratchet Straps W/S-Hooks:
Item Name: 1" Ratchet Straps W/S-Hooks
China H.S Code: 5609000000
Material:Polyester webbing + Mn steel
Ratchet: 1,500lbs M.B.S Ratchet Or Cambuckle
Hooks: 1,500lbs M.B.S vinyl coated S hooks, or zinc plated J hooks.
Webbing belt: 1" wide with M.B.S 2,000lbs
W.L.L of Whole Assembly: 500lbs
Safety Factor: 2:1 on ratchets and hooks, 3:1 on webbing belts
Length: 1.6' fix end+ 13.4' long end (or As requested)
Color: Green, Yellow, Black, Red, Blue, Camo, Black, etc.
Standard: ASTM B30.9,WSTDA
Characteristic:Fast tension and release,wearable, factory direct cheap prices.
Package: Carton boxes+pallets
Wristrong China also manufactures one piece (endless) assembly for use without end fittings.The tie down strap can be stenciled with customer's company name or logo,and the color,length,width etc can be made to client's special requirements.Other Sizes And Different End Fitting For USA Style Ratchet Tie Down Straps Available From Us As bellow:
1" RATCHET & CAM BUCKLE TIE DOWN STRAPS
 |
ITEM NO. | BUCKLE | LENGTH | END FITTING | M.B.S. |
| RSFH110 | RATCHET | 10' or As requested | FLAT HOOK | 1,000LBS | |
| CSFH110 | CAM | 10' As requested | 1,000LBS | ||
 |
|||||
| RSSH110 | RATCHET | 10' As requested | STAMPED SNAP HOOK | 2,100LBS | |
| CSSH110 | CAM | 10' As requested | 1,000LBS | ||
 |
RSWH110 | RATCHET | 10' As requested | DOUBLE J HOOK | 2,100LBS |
| CSWH110 | CAM | 10' As requested | 1,000LBS | ||
 |
RSHK110 | RATCHET | 10' As requested | HOOK & KEEPER | 2,100LBS |
| CSHK110 | CAM | 10' As requested | 1,000LBS | ||
 |
RSOH110 | RATCHET | 10' As requested | S HOOK (Vinyl Coated or Zinc Plated) | 2,100LBS |
| CSOH110 | CAM | 10' As requested | 1,000LBS | ||
 |
RSEL110 | RATCHET | 10' As requested | ENDLESS | 2,100LBS |
| CSEL110 | CAM | 10' As requested | 1,000LBS |
2" RATCHET TIE DOWN STRAPS
 |
ITEM NO. | STRAP | END FITTING | M.B.S. |
| RSDJ227 | 2" X 27' | DOUBLE J HOOK | 10,000LBS | |
| RSDJ230 | 2" X 30' | |||
 |
RSFH227 | 2" X 27' | FLAT HOOK | 10,000LBS |
| RSFH230 | 2" X 30' | |||
 |
RSGH227 | 2" X 27' | CHAIN GRAB HOOK | 10,000LBS |
| RSGH230 | 2" X 30' | |||
 |
RSSH227 | 2" X 27' | TWISTED SNAP HOOK | 10,000LBS |
| RSSH230 | 2" X 30' | |||
 |
RSCH227 | 2" X 27' | CHAIN ANCHOR ASSEMBLIES | 10,000LBS |
| RSCH230 | 2" X 30' | |||
 |
RSDR227 | 2" X 27' | DELTA RING | 10,000LBS |
| RSDR230 | 2" X 30' | |||
 |
RSLFH227 | 2" X 27' | FLAT HOOK | 5,000LBS |
| RSLFH230 | 2" X 30' | |||
 |
RSLDR227 | 2" X 27' | DELTA RING | 5,000LBS |
| RSLDR230 | 2" X 30' |
2" LOGISTIC TIE DOWN STRAPS
 |
ITEM NO. | STRAP | END FITTING | BUCKLE | M.B.S. |
| WLRB212 | 2" X12' | E Track Fitting | RATCHET | 3,000LBS | |
| WLRB216 | 2" X16' | ||||
 |
WERB212 | 2" X12' | 3 Piece End Fitting | RATCHET | 3,000LBS |
| WERB216 | 2" X16' | ||||
 |
WLCB212 | 2" X12' | E Track Fitting | CAM BUCKLE | 2,500LBS |
| WLCB216 | 2" X16' | ||||
 |
WBCB212 | 2" X12' | Butterfly Fitting | CAM BUCKLE | 1,250LBS |
| WBCB216 | 2" X16' |
3" /4" RATCHET TIE DOWN STRAPS
 |
ITEM | STRAP | END FITTING | M.B.S. |
| RSDJ327 | 3" X 27' | DOUBLE J HOOK | 15,000LBS | |
| RSDJ430 | 4" X 30' | |||
 |
RSFH327 | 3" X 27' | FLAT HOOK | 15,000LBS |
| RSFH430 | 4" X 30' | |||
 |
RSGH327 | 3" X 27' | CHAIN GRAB HOOK | 15,000LBS |
| RSGH430 | 4" X 30' | |||
 |
RSCH327 | 3" X 27' | CHAIN ANCHOR ASSEMBLIES | 15,000LBS |
| RSCH430 | 4" X 30' | |||
 |
RSFT327 | 3" X 27' | FORGED TRIANGLE | 15,000LBS |
| RSFT430 | 4" X 30' |
WINCH STRAP
 |
ITEM NO. | STRAP | END FITTING | M.B.S. |
| WSFH227 | 2" X 27' | FLAT HOOK | 10,000LBS | |
| WSFH230 | 2" X 30' | |||
 |
WSFH327 | 3" X 27' | FLAT HOOK | 12,000LBS |
| WSFH330 | 3" X 30' | |||
| WSFH427 | 4" X 27' | FLAT HOOK | 15,000LBS | |
| WSFH430 | 4" X 30' | |||
 |
WSFT327 | 3" X 27' | FORGED TRIANGLE | 12,000LBS |
| WSFT330 | 3" X 30' | |||
| WSFT427 | 4" X 27' | FORGED TRIANGLE | 15,000LBS | |
| WSFT430 | 4" X 30' | |||
 |
WSGH327 | 3" X 27' | CHAIN GRAB HOOK | 12,000LBS |
| WSGH330 | 3" X 30' | |||
| WSGH427 | 4" X 27' | CHAIN GRAB HOOK | 15,000LBS | |
| WSGH430 | 4" X 30' | |||
 |
WSCH327 | 3" X 27' | CHAIN ANCHOR ASSY | 12,000LBS |
| WSCH330 | 3" X 30' | |||
| WSCH427 | 4" X 27' | CHAIN ANCHOR ASSY | 15,000LBS | |
| WSCH430 | 4" X 30' | |||
 |
WSDJ327 | 3" X 27' | DOUBLE J HOOK | 12,000LBS |
| WSDJ330 | 3" X 30' | |||
| WSDJ427 | 4" X 27' | DOUBLE J HOOK | 15,000LBS | |
| WSDJ430 | 4" X 30' | |||
 |
WSSE327 | 3" X 27' | SEWN EYE | 12,000LBS |
| WSSE330 | 3" X 30' | |||
| WSSE427 | 4" X 27' | SEWN EYE | 15,000LBS | |
| WSSE430 | 4" X 30' |
TOW STRAP
 |
ITEM NO. | STRAP | END FITTING | M.B.S. |
| TSHH220 | 2" X 20' | EYE HOOK | 10,000LBS | |
 |
TSEE220 | 2" X 20' | FLAT EYE | 10,000LBS |
| TSEE320 | 3" X 20' | 13,000LBS | ||
| TSEE420 | 4" X 20' | 15,000LBS |
Other Ratchet Tie Down Straps Available From Us:
