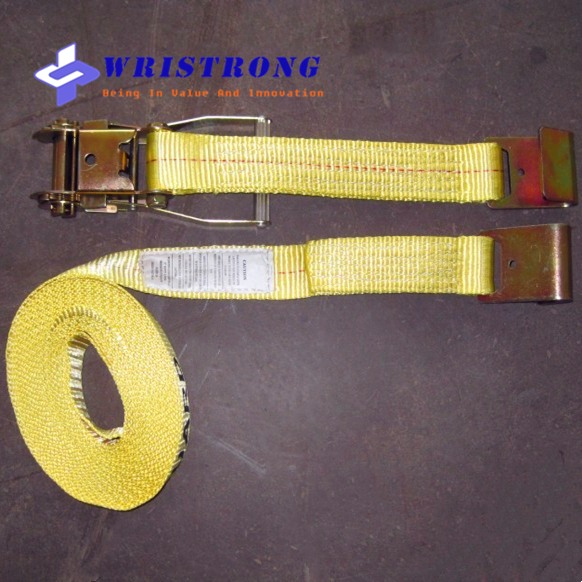

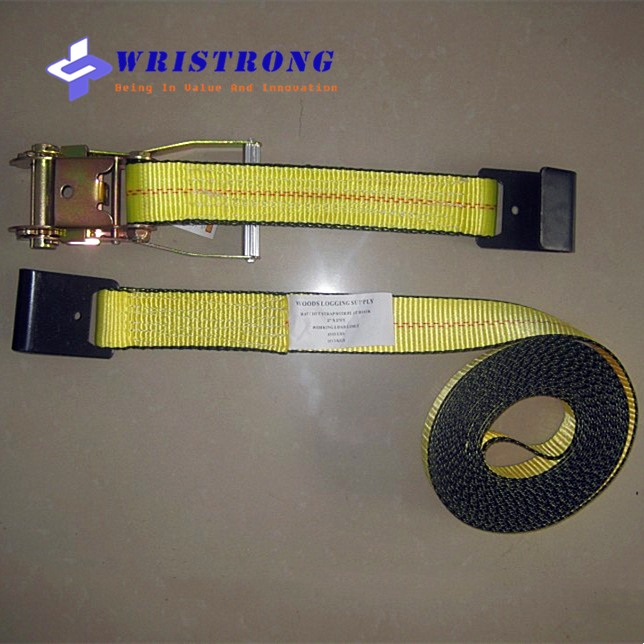

2 Inch Ratchet Straps With Flat Hooks
Please Note:
If you have any special requirements, you can contact us bellow and we will reply you as soon as possible.
Request A QuoteProduct Specification:
2" Ratchet Strap C/W Flat Hooks | China Wristrong Manufacturing
The 2" ratchet straps are most popular ratchet tie down straps in the market. Usally the length of the whole ratchet assembly will be 27' or 30', but if you would like to order any special length, we can also produce.
The standard work load limit(W.L.L) for 2" ratchet tie down strap is 3,333LBS, some ones also will rate as 3,335LBS, with the whole ratchet assembly minium break strength (M.B.S) at 10,000LBS. Besides qualities of ratchet and end fitting hooks, the main factor to determine the quality of the ratchet tie down strap is the webbings, manufactuers usally produce the webbing at M.B.S 12,000 LBS, while Wristrong always provides 14,000LBS ratchet strap belt, thus to make our ratchet assembly much more wearable and durable.
Description Of 2" Ratchet Straps With Flat Hooks :
Item Name: Ratchet Tie Down Straps 5Tonne
China H.S Code: 5609000000
Material:Polyester webbing + Mn steel
Ratchet: Alumium handle 11,000lbs M.B.S Ratchet
Hooks: 11,000lbs Tone M.B.S Flat hooks(electrophoresis black or zinc plate yellow )
Webbing belt: 2" wide with M.B.S 14,000lbs
W.L.L of Whole Assembly: 3335lbs
Safety Factor: 2:1 on ratchets and hooks, 3:1 on webbing belts
Length: 1.6' fix end+ 28.4' long end (or As requested)
Color: Yellow with two red stripes on webbing belt surface.
Standard: ASTM B30.9,WSTDA
Characteristic:Fast tension and release,wearable, factory direct cheap prices.
Package: Carton boxes+pallets
Wristrong China also manufactures one piece (endless) assembly for use without end fittings.The tie down strap can be stenciled with customer's company name or logo,and the color,length,width etc can be made to client's special requirements.Other Sizes And Different End Fitting For USA Style Ratchet Tie Down Straps Available From Us As bellow:
1" RATCHET & CAM BUCKLE TIE DOWN STRAPS
 |
ITEM NO. | BUCKLE | LENGTH | END FITTING | M.B.S. |
| RSFH110 | RATCHET | 10' or As requested | FLAT HOOK | 1,000LBS | |
| CSFH110 | CAM | 10' As requested | 1,000LBS | ||
 |
|||||
| RSSH110 | RATCHET | 10' As requested | STAMPED SNAP HOOK | 2,100LBS | |
| CSSH110 | CAM | 10' As requested | 1,000LBS | ||
 |
RSWH110 | RATCHET | 10' As requested | DOUBLE J HOOK | 2,100LBS |
| CSWH110 | CAM | 10' As requested | 1,000LBS | ||
 |
RSHK110 | RATCHET | 10' As requested | HOOK & KEEPER | 2,100LBS |
| CSHK110 | CAM | 10' As requested | 1,000LBS | ||
 |
RSOH110 | RATCHET | 10' As requested | S HOOK (Vinyl Coated or Zinc Plated) | 2,100LBS |
| CSOH110 | CAM | 10' As requested | 1,000LBS | ||
 |
RSEL110 | RATCHET | 10' As requested | ENDLESS | 2,100LBS |
| CSEL110 | CAM | 10' As requested | 1,000LBS |
2" RATCHET TIE DOWN STRAPS
 |
ITEM NO. | STRAP | END FITTING | M.B.S. |
| RSDJ227 | 2" X 27' | DOUBLE J HOOK | 10,000LBS | |
| RSDJ230 | 2" X 30' | |||
 |
RSFH227 | 2" X 27' | FLAT HOOK | 10,000LBS |
| RSFH230 | 2" X 30' | |||
 |
RSGH227 | 2" X 27' | CHAIN GRAB HOOK | 10,000LBS |
| RSGH230 | 2" X 30' | |||
 |
RSSH227 | 2" X 27' | TWISTED SNAP HOOK | 10,000LBS |
| RSSH230 | 2" X 30' | |||
 |
RSCH227 | 2" X 27' | CHAIN ANCHOR ASSEMBLIES | 10,000LBS |
| RSCH230 | 2" X 30' | |||
 |
RSDR227 | 2" X 27' | DELTA RING | 10,000LBS |
| RSDR230 | 2" X 30' | |||
 |
RSLFH227 | 2" X 27' | FLAT HOOK | 5,000LBS |
| RSLFH230 | 2" X 30' | |||
 |
RSLDR227 | 2" X 27' | DELTA RING | 5,000LBS |
| RSLDR230 | 2" X 30' |
2" LOGISTIC TIE DOWN STRAPS
 |
ITEM NO. | STRAP | END FITTING | BUCKLE | M.B.S. |
| WLRB212 | 2" X12' | E Track Fitting | RATCHET | 3,000LBS | |
| WLRB216 | 2" X16' | ||||
 |
WERB212 | 2" X12' | 3 Piece End Fitting | RATCHET | 3,000LBS |
| WERB216 | 2" X16' | ||||
 |
WLCB212 | 2" X12' | E Track Fitting | CAM BUCKLE | 2,500LBS |
| WLCB216 | 2" X16' | ||||
 |
WBCB212 | 2" X12' | Butterfly Fitting | CAM BUCKLE | 1,250LBS |
| WBCB216 | 2" X16' |
3" /4" RATCHET TIE DOWN STRAPS
 |
ITEM | STRAP | END FITTING | M.B.S. |
| RSDJ327 | 3" X 27' | DOUBLE J HOOK | 15,000LBS | |
| RSDJ430 | 4" X 30' | |||
 |
RSFH327 | 3" X 27' | FLAT HOOK | 15,000LBS |
| RSFH430 | 4" X 30' | |||
 |
RSGH327 | 3" X 27' | CHAIN GRAB HOOK | 15,000LBS |
| RSGH430 | 4" X 30' | |||
 |
RSCH327 | 3" X 27' | CHAIN ANCHOR ASSEMBLIES | 15,000LBS |
| RSCH430 | 4" X 30' | |||
 |
RSFT327 | 3" X 27' | FORGED TRIANGLE | 15,000LBS |
| RSFT430 | 4" X 30' |
WINCH STRAP
 |
ITEM NO. | STRAP | END FITTING | M.B.S. |
| WSFH227 | 2" X 27' | FLAT HOOK | 10,000LBS | |
| WSFH230 | 2" X 30' | |||
 |
WSFH327 | 3" X 27' | FLAT HOOK | 12,000LBS |
| WSFH330 | 3" X 30' | |||
| WSFH427 | 4" X 27' | FLAT HOOK | 15,000LBS | |
| WSFH430 | 4" X 30' | |||
 |
WSFT327 | 3" X 27' | FORGED TRIANGLE | 12,000LBS |
| WSFT330 | 3" X 30' | |||
| WSFT427 | 4" X 27' | FORGED TRIANGLE | 15,000LBS | |
| WSFT430 | 4" X 30' | |||
 |
WSGH327 | 3" X 27' | CHAIN GRAB HOOK | 12,000LBS |
| WSGH330 | 3" X 30' | |||
| WSGH427 | 4" X 27' | CHAIN GRAB HOOK | 15,000LBS | |
| WSGH430 | 4" X 30' | |||
 |
WSCH327 | 3" X 27' | CHAIN ANCHOR ASSY | 12,000LBS |
| WSCH330 | 3" X 30' | |||
| WSCH427 | 4" X 27' | CHAIN ANCHOR ASSY | 15,000LBS | |
| WSCH430 | 4" X 30' | |||
 |
WSDJ327 | 3" X 27' | DOUBLE J HOOK | 12,000LBS |
| WSDJ330 | 3" X 30' | |||
| WSDJ427 | 4" X 27' | DOUBLE J HOOK | 15,000LBS | |
| WSDJ430 | 4" X 30' | |||
 |
WSSE327 | 3" X 27' | SEWN EYE | 12,000LBS |
| WSSE330 | 3" X 30' | |||
| WSSE427 | 4" X 27' | SEWN EYE | 15,000LBS | |
| WSSE430 | 4" X 30' |
TOW STRAP
 |
ITEM NO. | STRAP | END FITTING | M.B.S. |
| TSHH220 | 2" X 20' | EYE HOOK | 10,000LBS | |
 |
TSEE220 | 2" X 20' | FLAT EYE | 10,000LBS |
| TSEE320 | 3" X 20' | 13,000LBS | ||
| TSEE420 | 4" X 20' | 15,000LBS |
