200T Hydraulic Wire Rope Swage Machine

Home > 200T Hydraulic Wire Rope Swage Machine

200T Hydraulic Wire Rope Swage Machine

Please Note:

If you have any special requirements, you can contact us bellow and we will reply you as soon as possible.

Request A Quote

Product Specification:

200T Hydraulic Wire Rope Swage Machine | Wristrong Sales

China Wristrong has been dedicated to supplying and developing hydraulic wire rope press machine, wire rope annealing and tapering machine for more than 6 years . With the supports of  advanced producing equipment,continuous improvement and innovation from our invested supplier, Wristrong wire rope machine have won many national invention patents and utility model patents.

Wristrong hydraulic swager is forgged from high stength alloy steel. The body of swagers are manufactured from one single block construction that ensure strength and long service life. Our hydraulic machines adopt high pressure and low pressure pump oil supply system to bring in fast upward and downward speed as well as smooth pressing process, greatly improving the pressing quality and production efficiency.  The Wristrong hydraulic press machines and wire rope annealing machine have been exported to UK, Australia, Holland, Latvia, Malaysia, Thailand, India, Russia, Botswana,Polland and so on.

The WT-200T  Hydraulic Steel Wire Rope Press Machine is also hydraulic wire rope swager is made from high strength alloy steel. This press swager machine come with max press power at 2,000kn, can process the wire rope diameter upto 22mm.

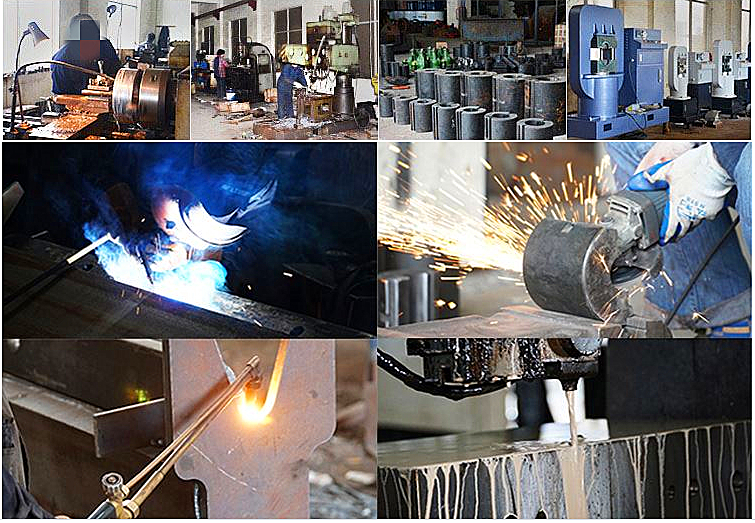

wire-rope-machine-production

Features Of Wire Rope Swage Machine WT-200T:

1. The swage constructions are forged from high strength alloy steel. The body off swagers are manufactured from one single block construction that ensure strength and long service life..

2. Wristrong hydraulic machines adopt high pressure and low pressure pump oil supply system to bring in fast upward and downward speed as well as smooth pressing process, greatly improving the pressing quality and production efficiency.

3. The die tables of Wristrong hydraulic press machines are designed to change different mold easy. Clients can press other products through changing dies.

4. All Wristrong dies are made of high quality die steel and undergoes high temperature, queching, tempering and other processes, becoming sturdy and durable.

Technical Parameters Of Wire Rope Swage Machine WT-100T:

Mode No. WT-200T
Max press power (KN) 2000
Max wire rope diameter in one pressing (mm) Φ22
Max wire rope diameter in multi-pressing (mm) Φ25
Power (KW) 2.2
Max working pressure (Mpa) 56Mpa
Max piston movement (mm) 78
The up speed of piston (mm/sec) 8
The down speed of piston (mm/sec) 10
Total length (mm) 1200
Total width (mm) 600
Total height (mm) 1400
Net weight (kg) 900

Wristrong China offers a wide range of wire rope press machines and wire rope annealing and tapering machines for different wire rope diameter. Please Check the link bellow for more of our wire rope machine:

Wire Rope Machine
