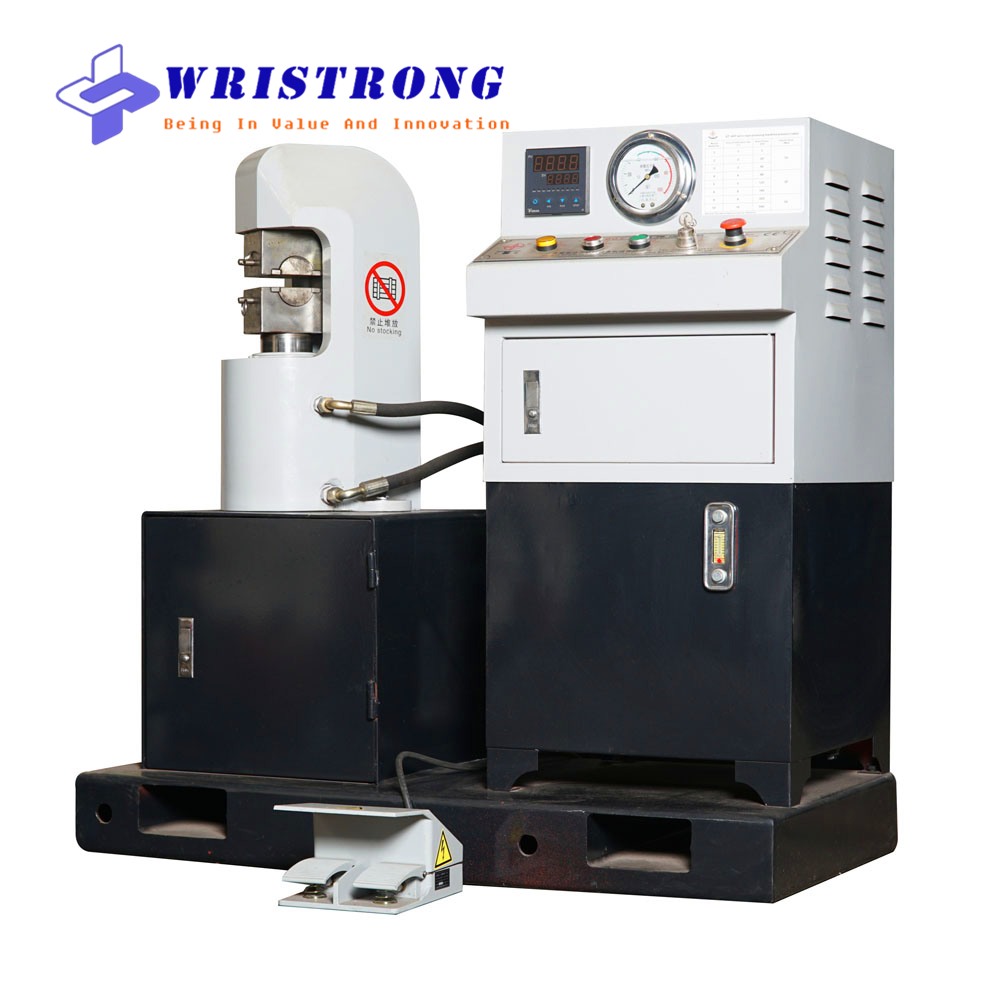

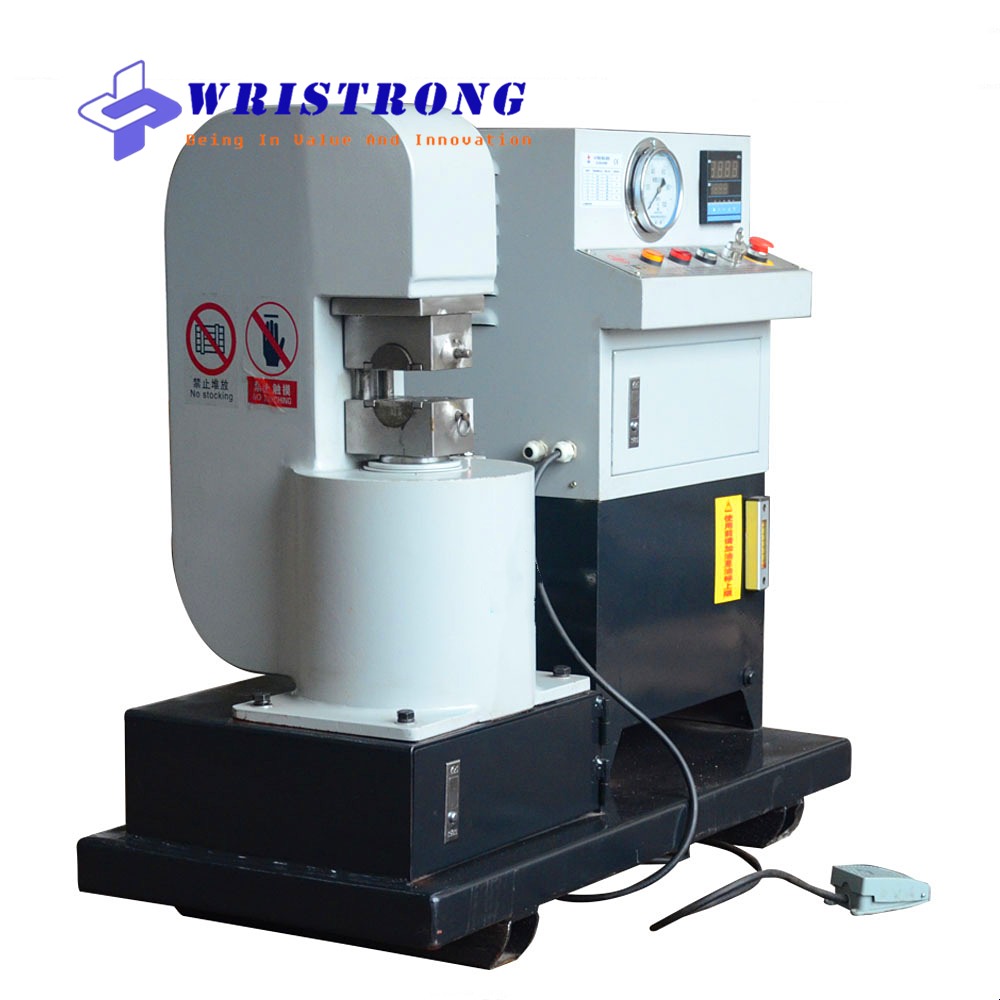

C Frame Hydraulic Wire Rope Swage Machine 60T
Please Note:
If you have any special requirements, you can contact us bellow and we will reply you as soon as possible.
Request A QuoteProduct Specification:
C Frame Hydraulic Wire Rope Swage Machine 60T | Hot Sales
China Wristrong has been dedicated to supplying and developing hydraulic wire rope press machine, wire rope annealing and tapering machine for more than 6 years . With the supports of advanced producing equipment,continuous improvement and innovation from our invested supplier, Wristrong wire rope machine have won many national invention patents and utility model patents.
Wristrong hydraulic swager is forgged from high stength alloy steel. The body of swagers are manufactured from one single block construction that ensure strength and long service life. Our hydraulic machines adopt high pressure and low pressure pump oil supply system to bring in fast upward and downward speed as well as smooth pressing process, greatly improving the pressing quality and production efficiency. The Wristrong hydraulic press machines and wire rope annealing machine have been exported to UK, Australia, Holland, Latvia, Malaysia, Thailand, India, Russia, Botswana,Polland and so on.
The WT-60TG is a small light weighted wire rope swager and come with only 450kgs net weight, which make is portable easier to transport from workshop to work sites. This press swager machine come with max press power at 600kn, can process the wire rope diameter upto 10mm, is ideal to process the small wire rope slings and daily use.
Features Of Wire Rope Press Machine WT-60TG:
1. WT-60TG wire rope press machine come with both mechanical and electrical molds. By switching between two different molds, you can suppress the different specifications of wire rope, easy and safe to operate .
2. Dual control for hydraulic system, the overflow valve, magnetic contact on the pressure gauge can be accurately controlled.
3. Electric control parts of the low-voltage control, an increase of operating system security.
4. All Wristrong dies are made of high quality die steel and undergoes high temperature, queching, tempering and other processes, becoming sturdy and durable.
5.Pull the rope to suppress large, beautiful, fast, and a wire rope press-fit just a few minutes to complete, significantly reduced the labor intensity and improve the work efficiency.
Technical Parameters Of Wire Rope Swage Machine WT-60TG:
| Mode No. | WT-60TG |
| Max press power (KN) | 600 |
| Max wire rope diameter in one pressing (mm) | Φ8 |
| Max wire rope diameter in multi-pressing (mm) | Φ10 |
| Power (KW) | 1.5 |
| Max working pressure (Mpa) | 58Mpa |
| Max piston movement (mm) | 78 |
| The up speed of piston (mm/sec) | 15 |
| The down speed of piston (mm/sec) | 15 |
| Total length (mm) | 1000 |
| Total width (mm) | 550 |
| Total height (mm) | 1000 |
| Net weight (kg) | 450 |
