Hydraulic Steel Wire Rope Press Machine 6mm to 56mm

Home > Hydraulic Steel Wire Rope Press Machine 6mm to 56mm

Hydraulic Steel Wire Rope Press Machine 6mm to 56mm

Please Note:

If you have any special requirements, you can contact us bellow and we will reply you as soon as possible.

Request A Quote

Product Specification:

Hydraulic Steel Wire Rope Press Machine 6mm to 56mm | China Wristrong Supplying

China Wristrong has been dedicated to supplying and developing hydraulic wire rope press machine, wire rope annealing and tapering machine for more than 6 years . With the supports of  advanced producing equipment,continuous improvement and innovation from our invested supplier, Wristrong wire rope machine have won many national invention patents and utility model patents.

Wristrong hydraulic swager is forgged from high stength alloy steel. The body of swagers are manufactured from one single block construction that ensure strength and long service life. Our hydraulic machines adopt high pressure and low pressure pump oil supply system to bring in fast upward and downward speed as well as smooth pressing process, greatly improving the pressing quality and production efficiency.  The Wristrong hydraulic press machines and wire rope annealing machine have been exported to UK, Australia, Holland, Latvia, Malaysia, Thailand, India, Russia, Botswana,Polland and so on.

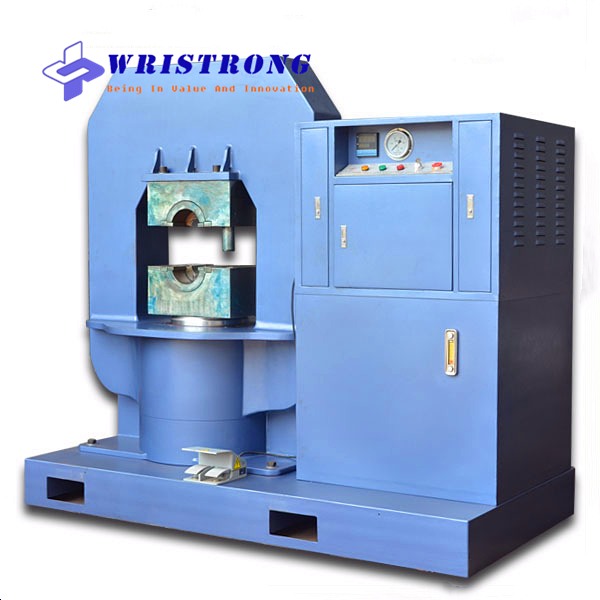

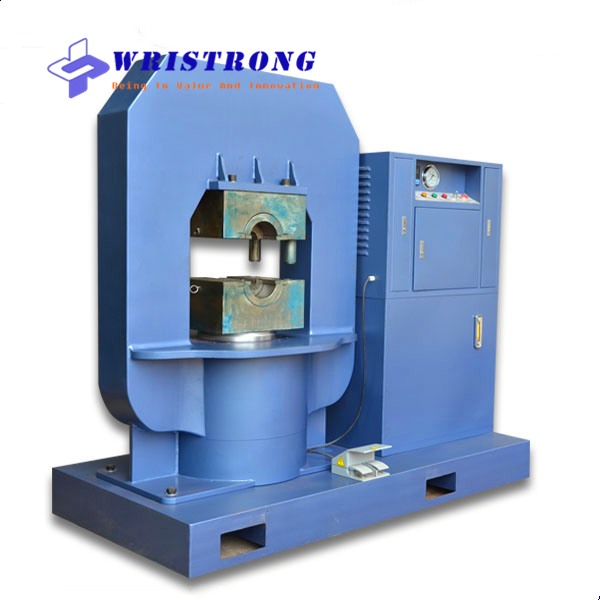

The WT-1000T  Hydraulic Steel Wire Rope Press Machine is also hydraulic wire rope swager is heavy duty and made from high strength alloy steel. This heavy duty press machine come with max press power at 10,000kn, can process the wire rope diameter from 6mm upto 56mm.

wire-rope-machine-production

Features Of Hydraulic Steel Wire Rope Press Machine WT-1000T:

1. The swage constructions are forged from high strength alloy steel. The body off swagers are manufactured from one single block construction that ensure strength and long service life..

2. Wristrong hydraulic machines adopt high pressure and low pressure pump oil supply system to bring in fast upward and downward speed as well as smooth pressing process, greatly improving the pressing quality and production efficiency.

3. The die tables of Wristrong hydraulic press machines are designed to change different mold easy. Clients can press other products through changing dies.

4. All Wristrong dies are made of high quality die steel and undergoes high temperature, queching, tempering and other processes, becoming sturdy and durable.

Technical Parameters:

Mode No. WT-1000T
Max press power (KN) 10000
Max wire rope diameter in one pressing (mm) Φ44
Max wire rope diameter in multi-pressing (mm) Φ56
Power (KW) 11
Max working pressure (Mpa) 56Mpa
Max piston movement (mm) 160
The up speed of piston (mm/sec) 4.8
The down speed of piston (mm/sec) 10
Total length (mm) 2100
Total width (mm) 1100
Total height (mm) 2000
Net weight (kg) 5500

Wristrong China offers a wide range of wire rope press machines and wire rope annealing and tapering machines for different wire rope diameter. Please Check the link bellow for more of our wire rope machine:

Wire Rope Machine
