Lifting Sling Bags-Cloverleaf Slings

Home > Lifting Sling Bags-Cloverleaf Slings

Lifting Sling Bags-Cloverleaf Slings

Please Note:

If you have any special requirements, you can contact us bellow and we will reply you as soon as possible.

Request A Quote

Product Specification:

Lifting Sling Bags | Pallet Slings | Clover Leaf Slings | Hot Sales

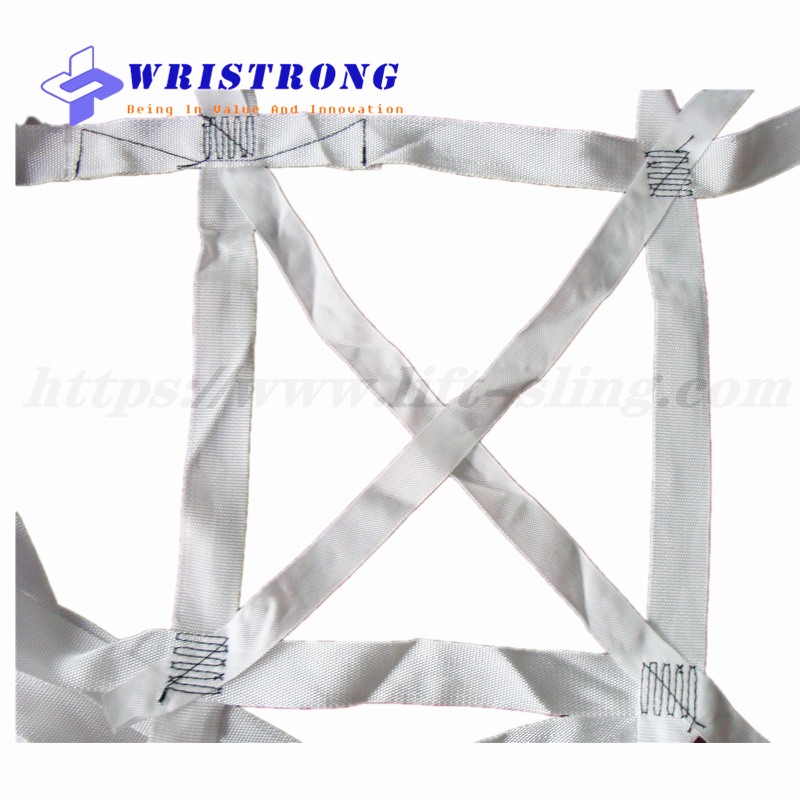

These Lifting Sling Bags-Cloverleaf Slings are called pallet slings, as they come with reinforced bases, that are strengthened by four  lifting webbing belts stitched onto four sides. In addition, there are two lifting belts accross the whole base in both vertical and horizontal ways, which are also stitched firmly with the base cloth. This makes the lifting sling bags-cloverleaf slings ideal to handle the pallets without legs, which are hard to be fork lifted.

Brief Specification on Lifting Sling Bags-Cloverleaf Slings:

Material: Polyester or Polypropylene

Safety Factor: 5:1,7:1,4:1, 3:1

Length: As requested

Color: White,Black,Grey,etc

Standard: DIN 60005,ISO 21898,EN 1492-1,BS 3481-3, BS EN 1898.2001ect

Characteristic: 100% acc to the standard

Package: Polyester bags+Pallets

One Example Of Wristrong Cloverleaf Sling Label:


Introduction On Lifting Sling Bags-Cloverleaf Slings :

Colverleaf Lifting Slings is also called as lifting sling bags or boxes, and we also call it cloverleaf slings because of its shapes. Actually it is kind of full-open type FIBC bags or jumbo bulk bags, designed to pack cements, sugars, rices, corns,etc. Wristrong has different kinds of these kind lifting bags availabe, including the LABORDATA tested lifting sling bags acc. to ISO21898. However, all of these sling bags are single trip and should be deserted at the end of transporation chain.

1, There are three types of materials used for disposable flat lifting slings, a polyethylene, a water resistant reinforced paper or a woven webbing outer layer to contain straight polyester fibres. They are made in several widths and strengths according to the intended use. The slings are designed for one load only (to enable that load to be despatched and received) and are not intended for repeated use.

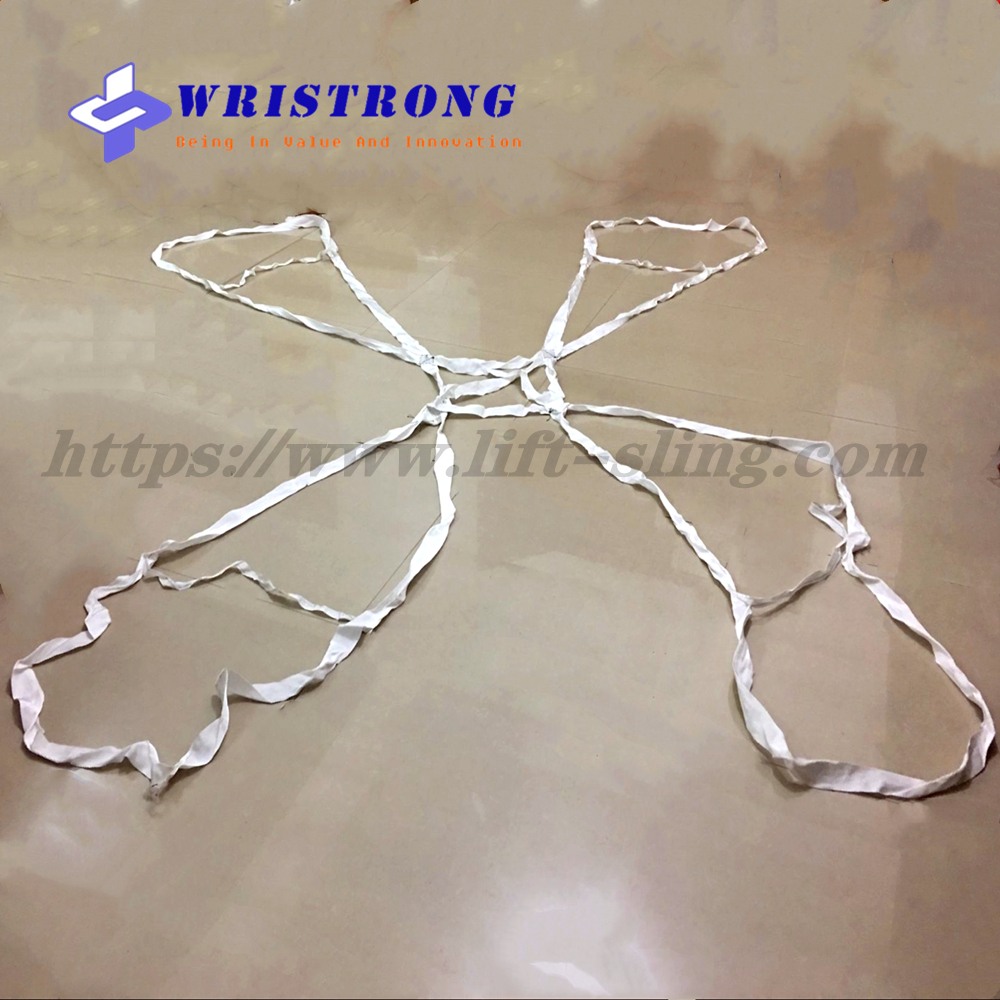

2, They are normally used in the pre-slinging of bagged cargo and are assembled into a form known as 'cloverleaf' as the empty sling in plan view resembles a four leaf clover. Increasingly they are being used in the construction industry to lift sections of timber framed houses or roof trusses and in manufacturing for packs of steel, wood or plastic.

3, They are not used for general lifting purposes because, although they have a satisfactory but slightly lower factor of safety, they are not suitable for repeated use due to their comparatively light construction and low abrasive resistance. These slings should be disposed of once they have been detached from the load at the final destination.

4, Slings of this type are not individually proof tested, but any metal fittings, such as rings or links, should be proof tested in the normal way. This type of sling would not need to be subjected to periodic examination by a competent person, due to its disposable nature.

5, There is no specific standard for Disposable Flat Lifting Slings (the old Bristish standard has been withdrawn) therefore BS EN 1492-1: 2000 may be used as a guide to compliance with the Essential Safety Requirements of the Supply of Machinery Regulations 1992 Schedule 2 Part 4. There are however standards for the production of disposible bags, known as Flexible IBC’s BS EN 1898.2001 which should be used.

Production Process Of Lifting Sling Bags-FIBC BAGS-BULK BAGS-JUMBO BAGS

Production Process of Panier Lifting Slings-FIBC BAGS-BULK BAGS-JUMBO BAGS

Diagram Of Lifting Sling Bags-Pallet Slings-Clover Leaf Slings:


Our Regular types - Dimensions in CM

Sling Types












Loading (Capacity) Size

Width * Length

100 * 120

100 * 120

100 * 100

120 * 120

145 * 115

115 * 115

120 * 120

165 * 165

140 * 140

130 * 95

170 * 120

Height 85 105 105 115 120 100 90 95 120 105 130
Sling Size Basic a* b Sling

65 * 85

70 * 90

65 * 65

85 * 85

115 * 85

70 * 70

75 * 75

135 * 135

110 * 110

100 * 65

140 * 90

ear development 'c'



280 340 350 280 260 295 350 316 370
Tail 'e+f' reach range 80 90 90 120 135 85 80 100 135 107 140

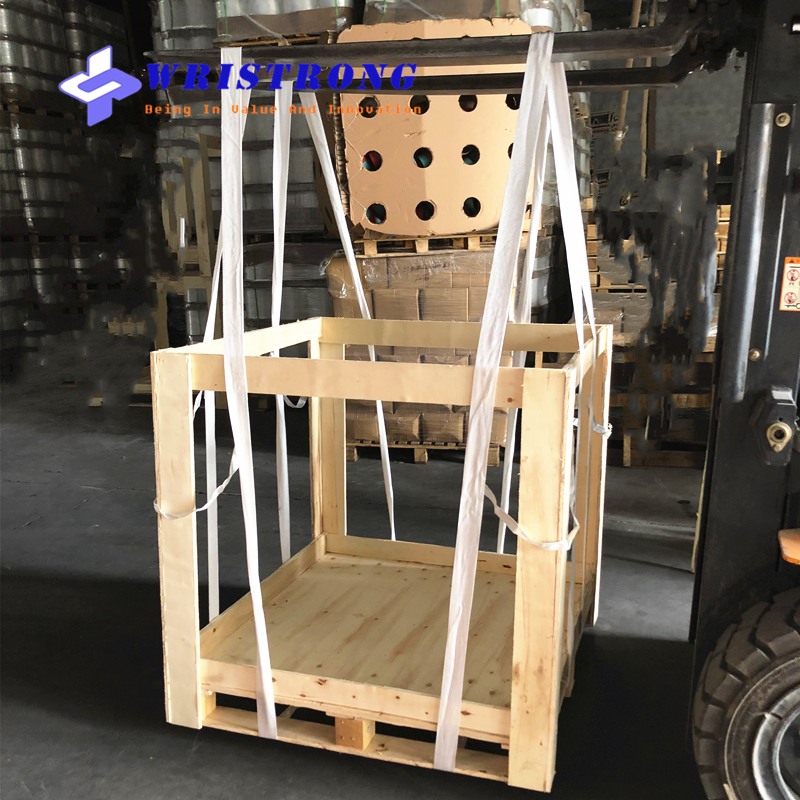

Wristrong On Way Clover Leaf Slings In Using:

cloverleaf-slings-bag-slings-cargo-lifting-slings-one-way one-way-slings-clover-leaf-slings



Other Related Cloverleaf Lifting Slings Available Here
