Polyester Webbing For Lifting Slings | China Wristrong Manufacturing
Wristrong Industry manufactures 1"-12''(25-300mm) webbing material for sewing all kinds of webbing sling, Which are made of Polyester or Nylon. we have a preparation to adopt PE PA or PP to product according to customers requirements.
Webbing material for difference safety factor duplex eye-eye and single endless webbing sling:
PS: The webbing photos bellow are based on European standard EN 1492-1 for lifting webbing slings. For other markets please only refer to the safety factor, For example, the North American market, You can refer to safety factor: 5:1, any other regular colors without black stripes or with special stripes on webbing are available.
Specification On Wristrong Lifting Webbing For Slings :
|

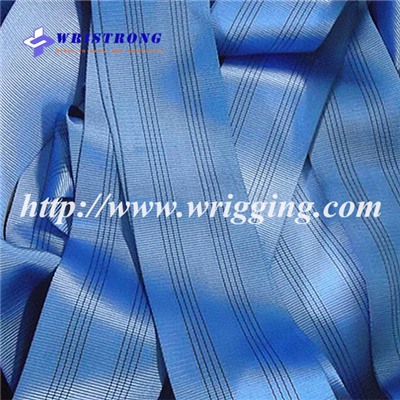

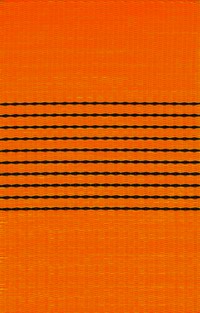

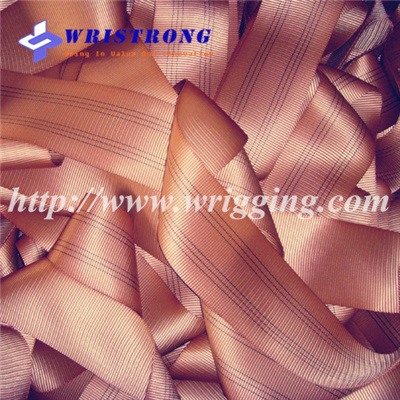

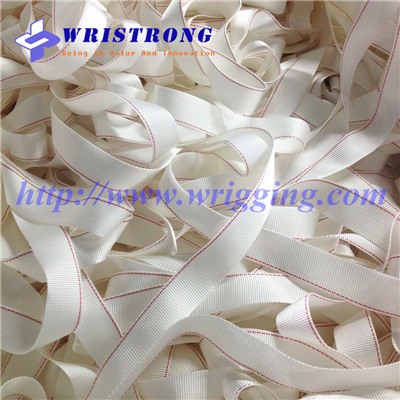

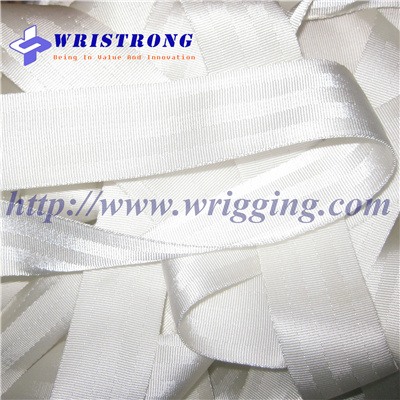

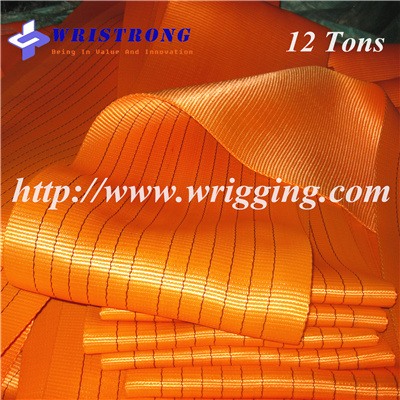

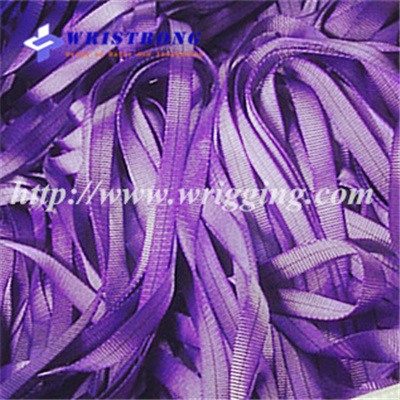

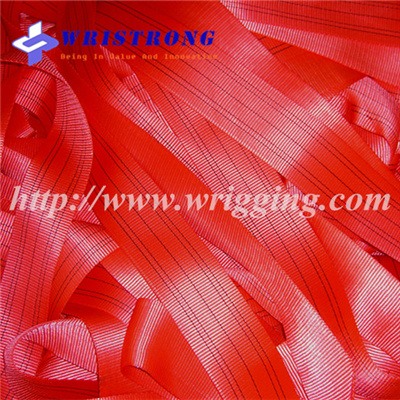

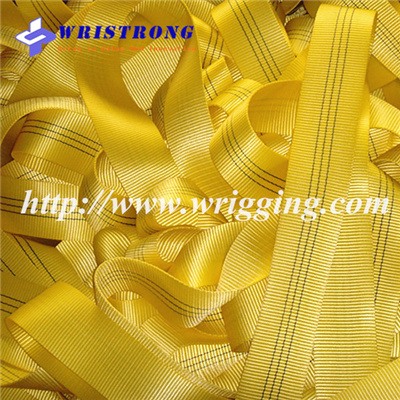

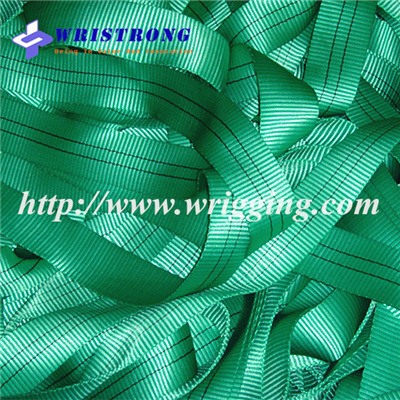

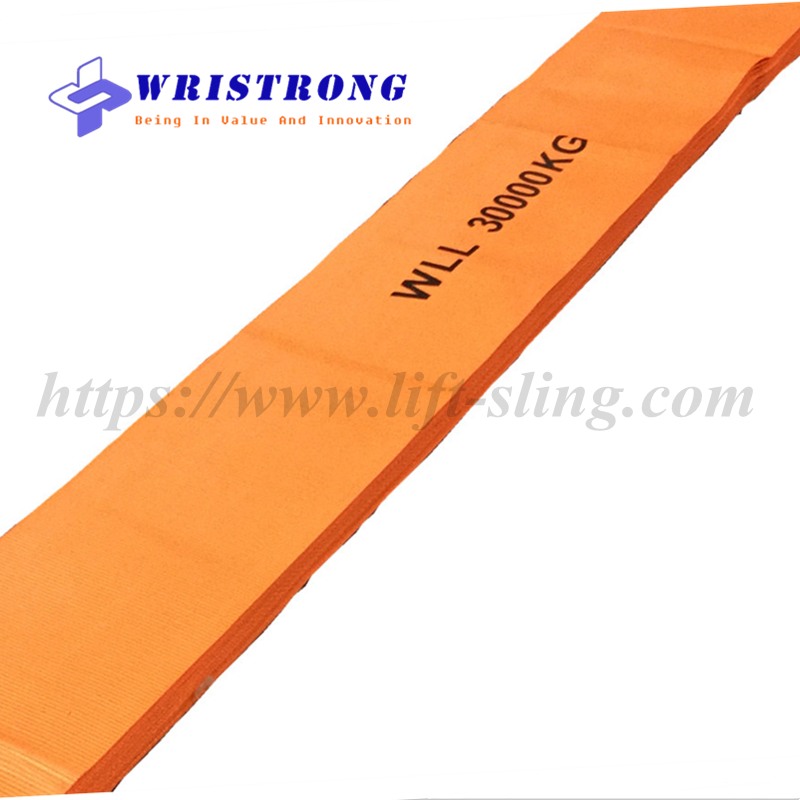

Webbing Photos |
Fac No. |
For SafetyFactor |
Color |
Width(mm) |
M.B.S.(kg) |
 |
F5W010 |
5:1 |
Violet |
25 |
3125 |
|
F6W010 |
6:1 |
25/38 |
3750 |
||
|
F7W010 |
7:1 |
30/50/60 |
4500 |
||
|
F8W010 |
8:1 |
50 |
5000 |
||
 |
F5W020 |
5:1 |
Green |
50 |
6250 |
|
F6W020 |
6:1 |
50 |
7500 |
||
|
F7W020 |
7:1 |
50 |
9000 |
||
|
F8W020 |
8:1 |
60 |
10000 |
||
 |
F5W030 |
5:1 |
Yellow |
75 |
9375 |
|
F6W030 |
6:1 |
75 |
11250 |
||
|
F7W030 |
7:1 |
90 |
13125 |
||
|
F8W030 |
8:1 |
95 |
15000 |
||
 |
F5W040 |
5:1 |
Grey |
100 |
12500 |
|
F6W040 |
6:1 |
100 |
15000 |
||
|
F7W040 |
7:1 |
120 |
17500 |
||
|
F8W040 |
8:1 |
120 |
20000 |
||
 |
F56W050 |
5:1 |
Red |
125 |
15625 |
|
F6W050 |
6:1 |
125 |
18750 |
||
|
F7W050 |
7:1 |
150 |
21875 |
||
|
F8W050 |
8:1 |
150 |
25000 |
||
 |
F5W060 |
5:1 |
Brown |
150 |
18750 |
|
F6W060 |
6:1 |
150 |
22500 |
||
|
F7W060 |
7:1 |
180 |
26250 |
||
|
F8W060 |
8:1 |
180 |
30000 |
||
 |
F5W080 |
5:1 |
Blue |
200 |
25000 |
|
F6W080 |
6:1 |
200 |
30000 |
||
|
F7W080 |
7:1 |
240 |
35000 |
||
|
F8W080 |
8:1 |
240 |
40000 |
||
 |
F5W100 |
5:1 |
Orange |
250 |
31250 |
|
F6W100 |
6:1 |
250 |
37500 |
||
|
F6W100 |
7:1 |
300 |
43750 |
||
|
F8W100 |
8:1 |
300 |
50000
|

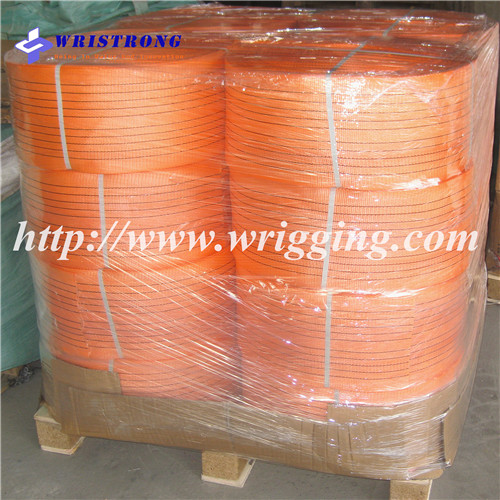

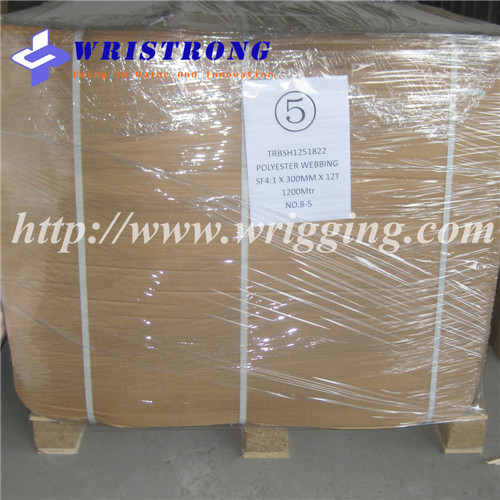

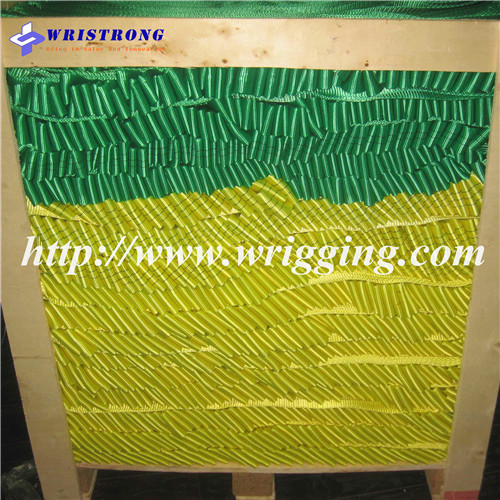

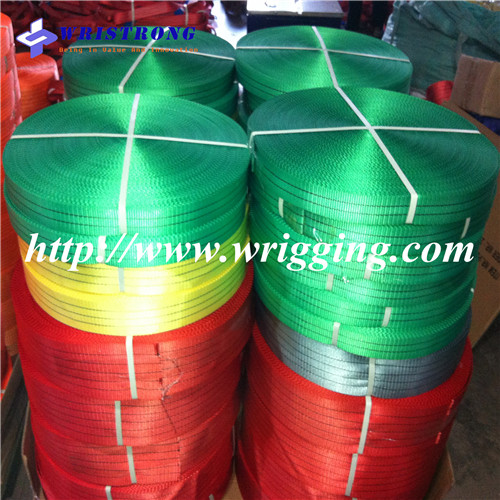

Packaging for webbing materials of Lifting SLings:
 |
 |
 |
 |
