Ratchet Tie Down With Claw Hooks

Home > Ratchet Tie Down With Claw Hooks

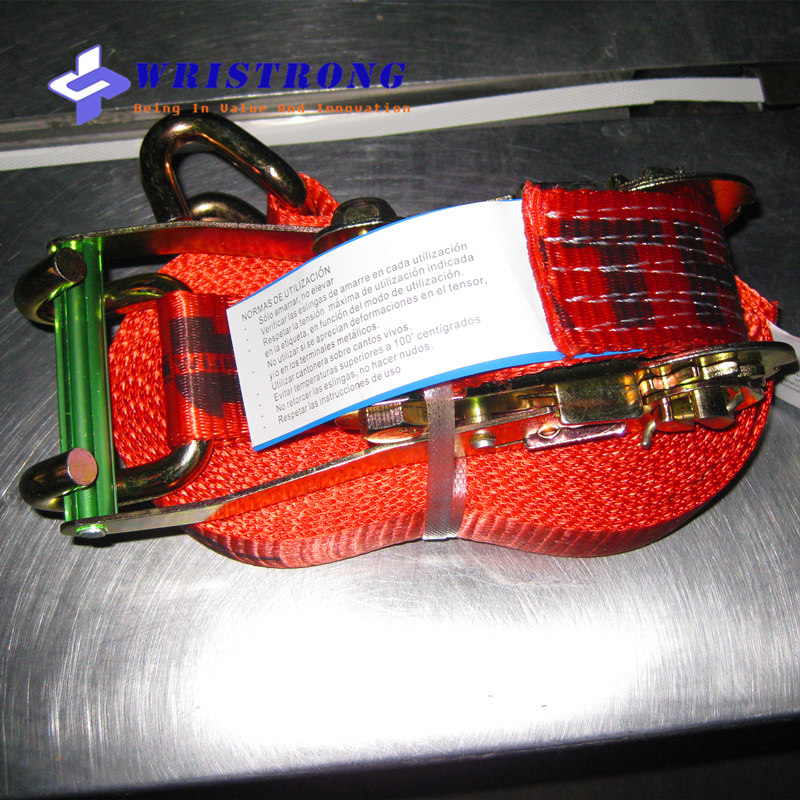

Ratchet Tie Down With Claw Hooks

Please Note:

If you have any special requirements, you can contact us bellow and we will reply you as soon as possible.

Request A Quote

Product Specification:

Ratchet Tie Down With Claw Hooks | China Wristrong Supplying

These ratchet tie downs come with U-shape hooks, which looks like tiger's claws, thus also called claw hooks. Compared with double J hooks, the claw hook has a wider hooking distance, this can distract the pressure at the hooking points. By this advantage, ratchet tie down with claw hooks will inflict less pressure on hooking points, which is better protected and can bear more tension strength.

China Wristrong, as one of leading manufactuers and suppliers in manufacturing ratchet tie downs, web lashing straps in China, is producing and selling these EN12195-2 standard ratchet tie downs / web lashing strap at most competitive prices now. In addition, Wristrong China can also produce the ratchet tie downs according to customers' special using requirements. For example, different end fitting hooks (See more details bellow); different ratchets; different colours, break strengths, and stiffnesses of the webbing belts. You can refer to our professional  Sales Team for your detailed requests.

Specification Of EN1219502 Ratchet Tie Down With Claw Hooks :

Item Name: Ratchet Tie Down With Claw Hooks 5Tonne

China H.S Code: 5609000000

Material:Polyester webbing + Mn steel

Ratchet:   Alumium handle 5 Tonne M.B.S Ratchet

Hooks: 5 Tone M.B.S Claw hooks

Webbing belt: 50MM wide with M.B.S 7500KGS

LC of Whole Assembly: 2500kgs

Safety Factor: 2:1 on ratchets and hooks, 3:1 on webbing belts

Length:  0.5m fix end+9.5m long long end (or As requested)

Color: Red with five black stripes on webbing belt surface.

Standard: EN12195-2

Characteristic:Fast tension and release,wearable, factory direct prices.

Package: Carton boxes+pallets

Wristrong Industry is manufacturing 25mm-100mm wide Ratchet tie downs, acc to EN12195-2 for European market, our ratche tie downs  are made of durable resin-coated,UV-resistant polyester webbing strap,and various heavy duty corrosion resistant ratchet buckles and end fitting hooks. Different types of Wristrong EN12195-2 Standard ratchet tie downs avaiable bellow:

Ratchet Tie Downs Endless Type

ratchet tie down endless type

Ratchet Tie Downs 5T

Ratchet tie downs 5t

Ratchet Tie Downs 4T

ratchet tie down 4t

Ratchet Tie Downs 3T

Ratchet Tie Down 3T

Ratchet Lashing Straps


Features Of Wristrong 5Tonne Ratchet Tie Downs:

Germany Quality standard

End fitting: S-hook, heavy duty S-hook, wire hook, vinyl coatedS-hook, U hooks, chain extensions, flat hooks and e-lock track.

Colors available: violet, green, yellow, gray, red, brown, blue, orange,black and white

With 50mm ratchet, metal stuff (heat-treated)

U-hooks provides secure hold without scratching or rusting(heat-treated)

Easy to on/off

With quick release lever

With 2500kgs working load low elongation

Used for tying down loads whilst transporting, shifting or moving them.

Replaced traditional jute ropes, chains and wires used fortransportation and for variety of other applications.

For webbing and mechanical load securing are designed in-house,constructed and produced using well-selected materials

All the metal parts are heat treated.

Our production facility is equipped with the latest machinery operated by competent experts.

Great for securing motorcycles, ATVs, lawn equipment and moreon trailers and truck beds.

Can also be used to secure small equipment to hand dollies.

Weather and rot resistant polyester webbing for maximum strength.

Trouble-free, push button quick-release ratchet lock-down forquick tightening and removal.

Durable straps and stable ratchet tension system will not loosen with road vibration.

Suitable for trucks, trailers and hand dollies

Customized lengths are accepted

OEM orders are welcome

All of our ratchet straps are manufactured according toEN12195-2:2000 or ASME/ANSI B.30. 9 standards

With TUV, GS, CE and GB marks

Compliant with RoHS Directive
