Steel Strapping
Please Note:
If you have any special requirements, you can contact us bellow and we will reply you as soon as possible.
Request A QuoteProduct Specification:

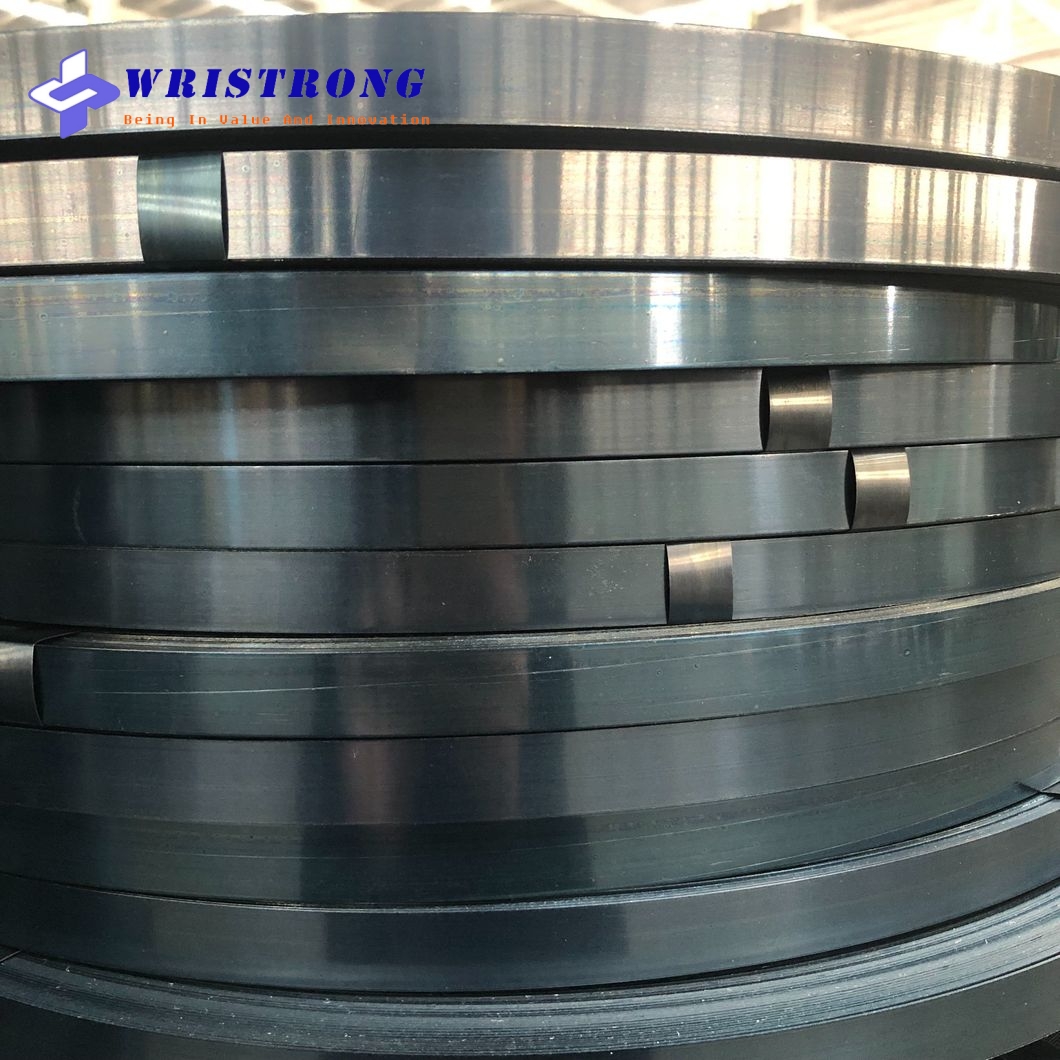

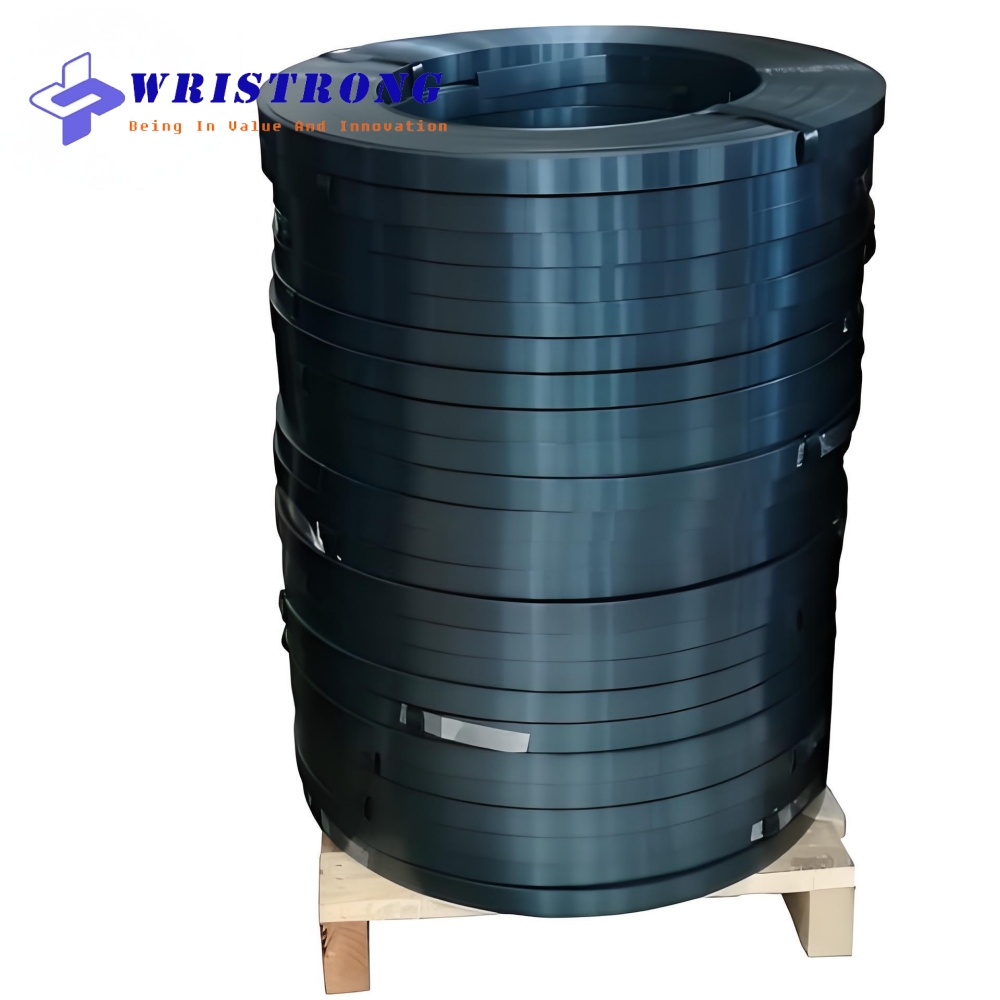

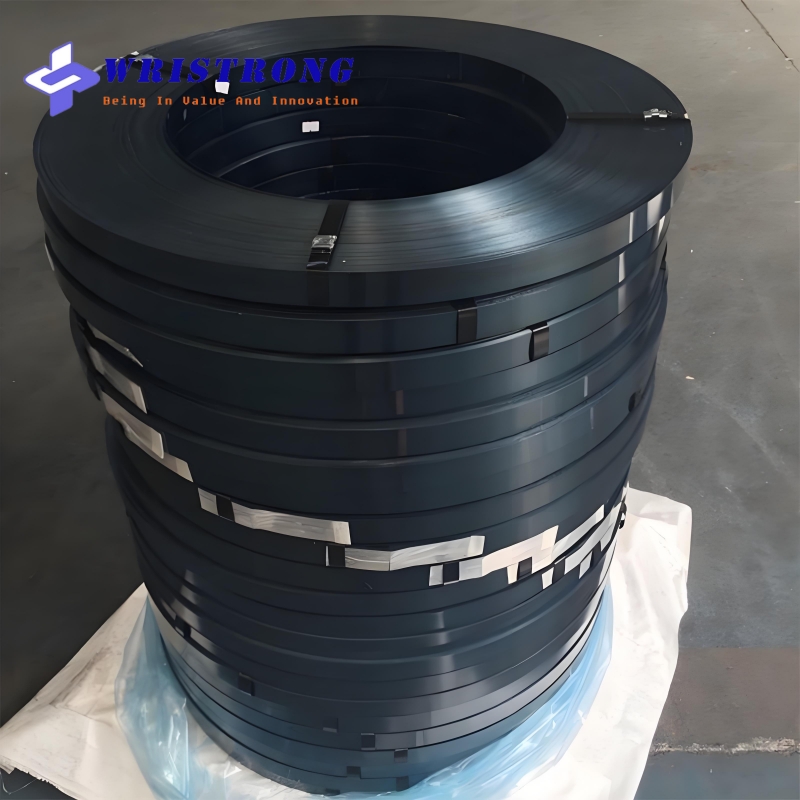

Metal Strapping-Steel Banding Strap
Steel Strapping | China Wristrong Supplying
Steel strapping is a type of packing belt. Steel strapping is mainly used in metal materials, glass, light industrial products, logistics and transportation, etc.
Steel strapping have 3kg-50kg/roll,2roll-5roll/bundle,(inside roll diameter is 200mm,300mm,406mm)waterproof paper inside, then plastic film or paper scroll or blue scroll or white scroll, finally hessian cloth or corrugated or carton. Wood pallet or iron pallet.
Regular size: 0.3/0.36/0.4/0.5/0.6 * 16mm , 0.7/0.8/0.9*19mm , 0.8*25mm , 0.8/0.9/1.0*32mm , 1.0/1.2*40mm
-Best quality control, and the price is competitive; -All the bundled products have been handled by patent technology, including removing the burr and fraze. The Steel strapping is smooth-edged, which can assure of safe using; -We can produce mini roll, weight tolerance per roll can be +/-0.5kg;as well as jumbo roll(coil weight is 150kg-400kg);
-We can produce super high duty Steel strappings, average tensile strength is 950 Mpa, elongation min 8%.
Features Of Wristrong Steel strapping:
-It can be loaded by container or bulk vessel.
-20ft container can load 22 tons, 40ft container can load 25tons.
-Standard export seaworthy package, it use steel belt with bundle according to goods size.
-OEM & ODM are both available.
-Minium Order:1Ton.
-Supply Ability:6000Tons.
-Production time: 5-31 days .
-With excellent shock absorption ability.
-Strapping tight without loose during usage.
Wristrong Steel strapping Specification:
|
Product Color |
Black,Bluing,Painted,White |
|
Surface Finish |
Bluing & oiled Steel strapping , Bluing & waxed Steel strapping , Black Steel strapping , Primary colors(white belt) , Galvanized Steel strapping |
|
Material |
High tensile steel Q195 / Q235 / Q345B / DB460 / |
|
Tensile strength |
(Q195)550-700Mpa / (Q235)680-780Mpa / (Q345)780-880Mpa /(DB460)880-980Mpa |
|
Enwind type |
Ribbon / oscillated Steel strapping |
|
Elongation |
3-6% / 6-8% / 8-12% |
|
Width |
9.5，10.2，11，12，12.7，15，16，17，17.25，19，22，24，25，25.4， 31，31.75，32，40，45mm (Width tolerance:±0.1mm) |
|
Thickness |
0.27-1.5mm (Thickness tolerance:±0.02mm) |
|
Inner diameter |
200 / 300 / 406mm |
|
Steel strapping Size |
Strength* |
Strap Finish |
Coil Winding |
Coil Weight |
|||||
|
width |
gauge |
||||||||
|
mm |
inch |
mm |
inch |
N |
lbs |
kg |
lbs |
||
| 15.9 | 5/8 | 0.51 | 0.020 | 8540 | 1,920 | Painted & Waxed | Mill | 47.6 | 105 |
| 15.9 | 5/8 | 0.58 | 0.023 | 9790 | 2,200 | Painted & Waxed | Mill | 47.6 | 105 |
| 19.0 | 3/4 | 0.51 | 0.020 | 10230 | 2,250 | Painted & Waxed | Mill | 47.6 | 105 |
| 19.0 | 3/4 | 0.58 | 0.023 | 11740 | 2,600 | Painted & Waxed | Mill | 47.6 | 105 |
| 19.0 | 3/4 | 0.64 | 0.025 | 12450 | 2,800 | Painted & Waxed | Ribbon | 47.6 | 105 |
| 19.0 | 3/4 | 0.64 | 0.025 | 12450 | 2,800 | Painted & Waxed | Mill | 34.0 | 75 |
| 19.0 | 3/4 | 0.64 | 0.025 | 12450 | 2,800 | Zinc | Mill | 47.6 | 105 |
| 19.0+ | 3/4+ | 0.74 | 0.029 | 14900 | 3,350 | Painted & Waxed | Ribbon | 47.6 | 105 |
| 19.0+ | 3/4+ | 0.74 | 0.029 | 15125 | 3,400 | Painted & Waxed | Ribbon | 34.0 | 75 |
| 25.1^ | 1^ | 0.80 | 0.031 | 20700 | 4,655 | Painted & Waxed | Ribbon | 49.9 | 110 |
| 31.8 | 1-1/4 | 0.64 | 0.025 | 21350 | 4,800 | Painted & Waxed | Ribbon | 49.9 | 110 |
| 31.8+ | 1-1/4+ | 0.74 | 0.029 | 24910 | 5,600 | Painted & Waxed | Ribbon | 49.9 | 110 |
| 31.8+ | 1-1/4+ | 0.74 | 0.029 | 25000 | 5,600 | Zinc | Ribbon | 49.9 | 110 |
| 31.8 | 1-1/4 | 0.79 | 0.031 | 25132 | 5,650 | Painted & Waxed | Ribbon | 49.9 | 110 |
| 31.8 | 1-1/4 | 0.89 | 0.035 | 29630 | 6,660 | Painted & Waxed | Ribbon | 49.9 | 110 |
| 31.8^ | 1-1/4^ | 1.00 | 0.039 | 32200 | 7,239 | Painted & Waxed | Ribbon | 49.9 | 110 |
| 31.8 | 1-1/4 | 1.12 | 0.044 | 37590 | 8,450 | Painted & Waxed | Ribbon | 49.9 | 110 |
