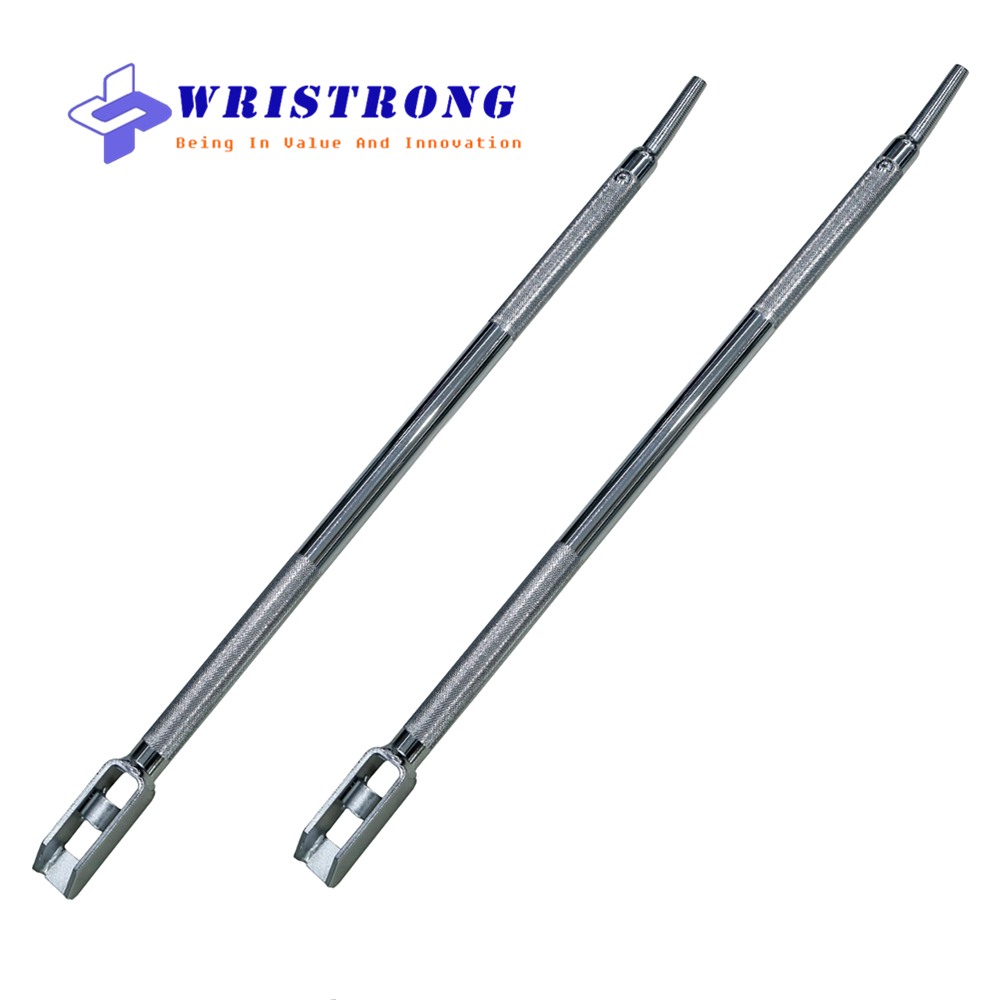

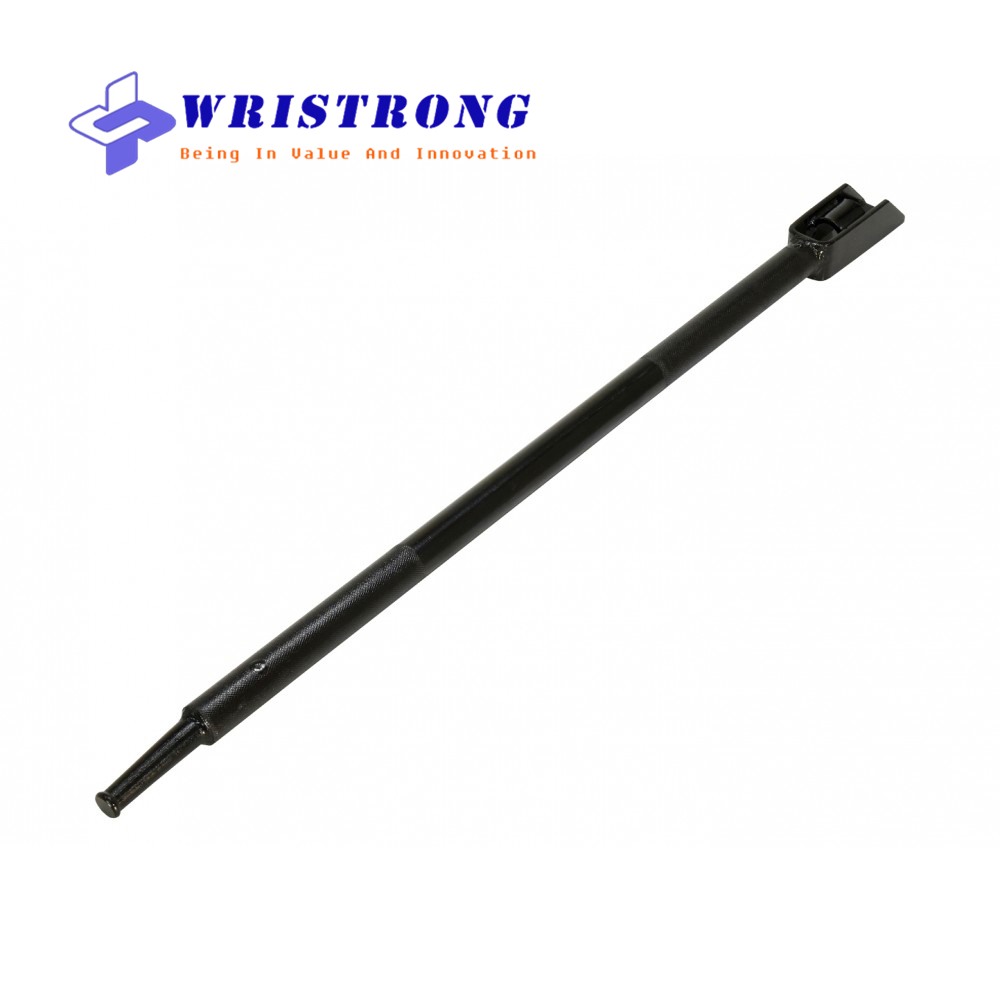

Truck Hand Winches & Winch Bars

Product Categories

Please Note:

If you have any special requirements, you can contact us bellow and we will reply you as soon as possible.

Request A Quote

Product Specification:

Truck Winch| Winch Winch | China Wristrong Selling

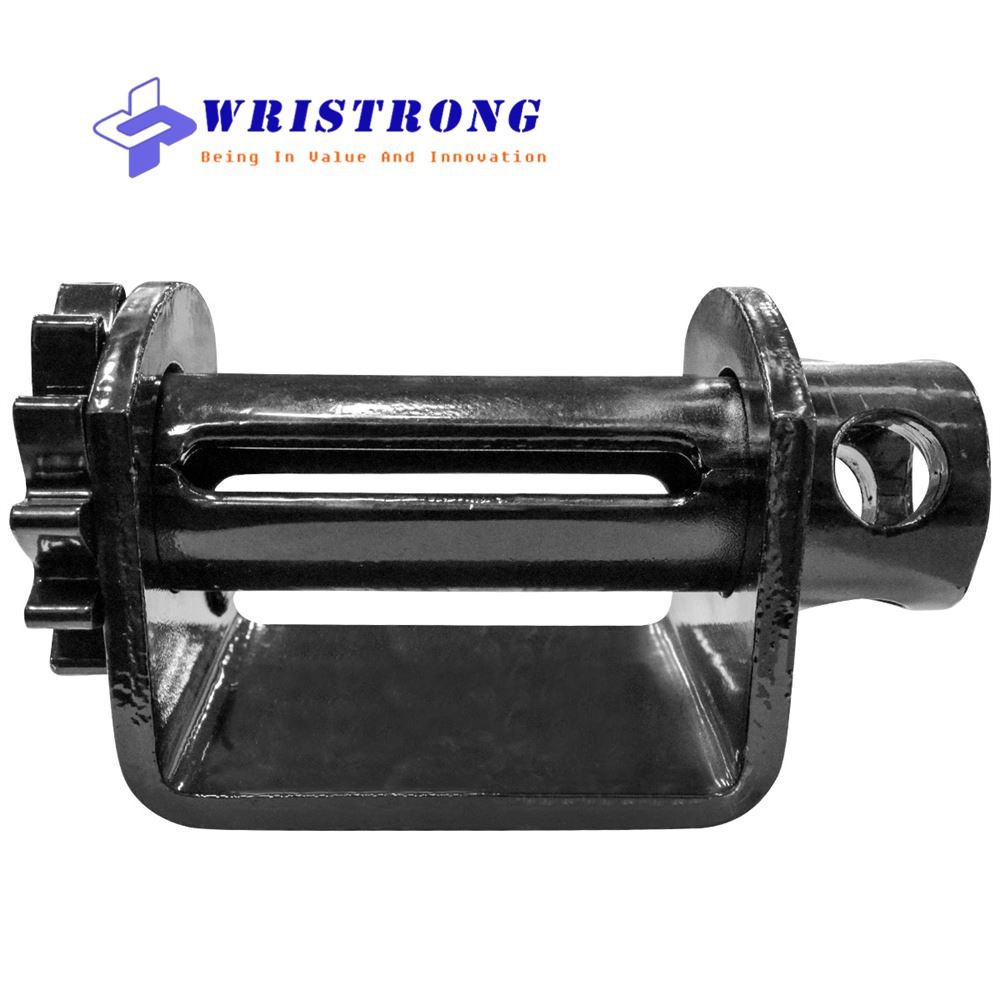

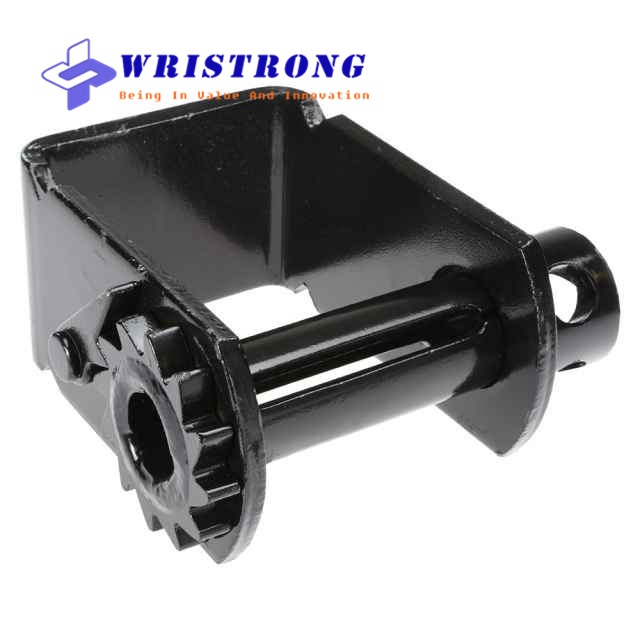

A truck hand winch in combination with a ramp is a useful solution for hauling heavy gear into the back of a van or onto a flatbed truck. If you’re moving considerably heavy items — outbuildings, sheds, or boulders, for example — just make sure the total weight of the load falls well within the winch’s capacity rating.

Breif Specification:

Material: Body / Steel A3; Hook / Steel 45

Safety Factor: 3:1

Length: As requested

Color: Silver, Black,etc

Standard: CE,WSTDA,AMSE

Characteristic: Stable quality,extremely wearable

Package: Carton boxes or Wooden boxes+pallets

Models Available Of Wristrong Truck Manual Winches

truck-winches-manual

Specification of Wristrong Manual Truck Winches & Lashing Strap Winches:

Item No.	A mm	B mm	C mm	D mm	Q'ty pcs/ctn	G.W kgs	N.W kgs	Volume cuft
TW422	246	124	140	90	5	22.5	21.5	0.62
TW412	204	124	110	100	5	21	20	0.47
TW410	204	124	140	90	5	20.5	19.5	0.55
TW416	204	124	158	90	5	23.5	22.5	0.65
TW401	204	124	158	90	5	22	21	0.61
TW410Z	204	124	150	102	5	21.5	20.5	0.38
TW412H	204	124	110	100	4	26.5	25.5	0.4
TW430	204	124	170	90	4	25.5	24.5	0.47
TW413	204	124	110	100	5	22.5	21.5	0.61
TW411	204	124	140	90	5	21.5	20.5	0.73
TW402	204	124	158	90	5	24.5	23.5	0.81
TW1860	206	124	140	90	5	22.5	21.5	0.55
TW1860P	206	124	140	90	5	22.5	21.5	0.55
TW433	245	165	110	102	5	24	23	0.61
TW432	245	165	140	90	5	22.5	21.5	0.67
TW414	260	184	137	76	5	22.5	21.5	0.57
TW445	260	240	140	100	5	32	31	0.78
TW421H	204	124	140	90	5	19.5	18.5	0.54
TW421	204	124	140	90	5	19.5	18.5	0.54
TW428	204	124	158	90	5	20	19	0.65
TW434N	204	124	140	100	5	21.5	20.5	0.61
TW434	204	124	150	100	5	22.5	21.5	0.67
TW419N	204	124	152	100	5	22.5	21.5	0.67
TW419	204	124	175	100	5	24.3	23.3	0.72
TW420N	204	124	155	100	5	25	24	0.38
TW420	204	124	190	100	5	26.5	25.5	0.81
TW419D	248	124	175	100	5	27	26	0.81
TW1820	273	195	155	100	5	28.5	27.5	0.9
TW437	254	166	110	100	5	28.5	27.5	0.64
TW438	254	166	140	102	5	30	29	0.82
TW437B	278	186	174.6	125.4	4	28	27	0.9
TW426	204	120	96	124	5	17.5	16.5	0.52
TW427	259	171	95	124	5	19.5	18.5	0.6
TW435-1	204	124	100	186	5	20.5	19.5	0.6
TW435	204	124	100	186	4	11	10	0.41
TW436	204	124	151	90	5	20	19	0.74
TW436B	204	124	207	131	5	21.5	20.5	1
TW425	185	106	255	100	5	35	34	1.1
TW417-2	206	54	190	90	5	27.8	26.8	1.26
TW417-3	206	79	190	90	5	27.8	26.8	1.26
TW417-4	206	105	190	90	5	27.8	26.8	1.26
TW415	230	60	200	70	5	17.5	16.5	0.65
TW1890	225	84	225	100	5	28	27	1.07
TW415LL	555	415	90	180	5	26	25	1.66
TW415L	555	415	68	180	5	38.5	37.5	1.06
TW415-S	415	275	68	180	5	29.5	28.5	0.95
TW200	125	53	102	75	20	32	31	0.82
TW200A	149.5	53	102	75	20	35	34	1.14
TW201	132	53	102	75	20	33	32	0.82
TW201A	128	53	102	75	20	28	27	0.86
TW202	125	53	102	75	20	32	31	0.86
TW202B	125	53	114.3	75	20	32.5	31.5	0.91
W5-1	160	58	100	60	20	27	26	0.8
CW5B-2S	174	63	100	60	20	37	36	0.83
CW5-1S	160	58	140	60	20	39	38	1.1
CW5-2S	125	58	100	70	12	26.5	25.2	0.68
