Wire Rope Swage Machine 100T
If you have any special requirements, you can contact us bellow and we will reply you as soon as possible.Request A Quote
Wire Rope Swage Machine 100T | China Wristrong Supplying
China Wristrong has been dedicated to supplying and developing hydraulic wire rope press machine, wire rope annealing and tapering machine for more than 6 years . With the supports of advanced producing equipment,continuous improvement and innovation from our invested supplier, Wristrong wire rope machine have won many national invention patents and utility model patents.

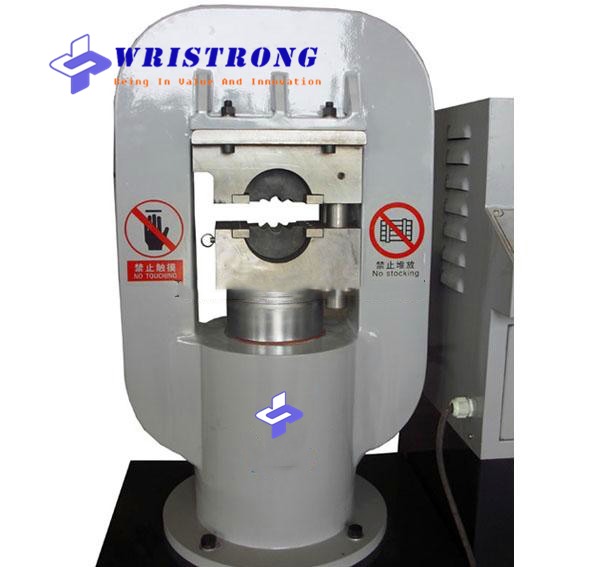

Wristrong hydraulic swager is forgged from high stength alloy steel. The body of swagers are manufactured from one single block construction that ensure strength and long service life. Our hydraulic machines adopt high pressure and low pressure pump oil supply system to bring in fast upward and downward speed as well as smooth pressing process, greatly improving the pressing quality and production efficiency. The Wristrong hydraulic press machines and wire rope annealing machine have been exported to UK, Australia, Holland, Latvia, Malaysia, Thailand, India, Russia, Botswana,Polland and so on.The WT-100T Hydraulic Steel Wire Rope Press Machine is also hydraulic wire rope swager is made from high strength alloy steel. This press swager machine come with max press power at 1,000kn, can process the wire rope diameter upto 15mm.
Features Of Wire Rope Swage Machine WT-100T:
1. The swage constructions are forged from high strength alloy steel. The body off swagers are manufactured from one single block construction that ensure strength and long service life..
2. Wristrong hydraulic machines adopt high pressure and low pressure pump oil supply system to bring in fast upward and downward speed as well as smooth pressing process, greatly improving the pressing quality and production efficiency.

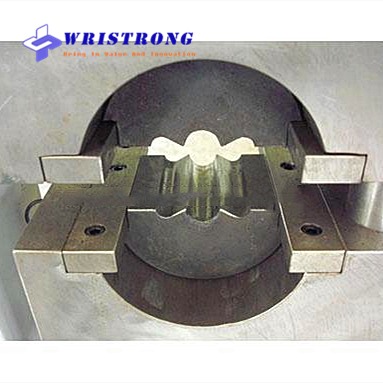

3. The die tables of Wristrong hydraulic press machines are designed to change different mold easy. Clients can press other products through changing dies.
4. All Wristrong dies are made of high quality die steel and undergoes high temperature, queching, tempering and other processes, becoming sturdy and durable.
Technical Parameters Of Wire Rope Swage Machine WT-100T:
|Max press power (KN)||1000|
|Max wire rope diameter in one pressing (mm)||Φ13|
|Max wire rope diameter in multi-pressing (mm)||Φ15|
|Max working pressure (Mpa)||56Mpa|
|Max piston movement (mm)||78|
|The up speed of piston (mm/sec)||8|
|The down speed of piston (mm/sec)||10|
|Total length (mm)||1100|
|Total width (mm)||550|
|Total height (mm)||1250|
|Net weight (kg)||600|
