Product Specification:

4" Heavy Duty Winch Straps | China Wristrong Manufacturing

The 4" wide heavy duty web winch straps are the replacement of loose end (long end) of normal 4" wide ratchet strap. And generally these web winch straps are used onto the truck winches or boat winches, both in manual or electric powered. China Wristrong also supplys a wide range of Truck Winches and Boat Winches for your one-stop purchase.

Wristrong provides variety of different lengths, widths and end fittings to accommodate all different types of transportation security, Wristrong Winch Straps are equipped with strong and durable end fittings that fastly and easily hook onto the anchor points, creating a strong and reliable grip . The end fittings available from us are Flat Hooks, Wire Hooks, Chain Anchors, Delta Rings as well as Stitched Loops that work together with both the webbing belt and the tensioning winches to tie down and stabilize your cargo transporation. You can see all these in Ratchet Straps List bellow.

The standard work load limit(W.L.L) for 4" winch strap is 5,500LBS, some ones also will rate as 5,400LBS, with the actual whole assembly minium break strength (M.B.S) at 15,000LBS and webbing belt M.B.S at 20,000LBS. Detailed Techincal data go as follows.

Description Of 4" Winch Straps With Flat Hooks :

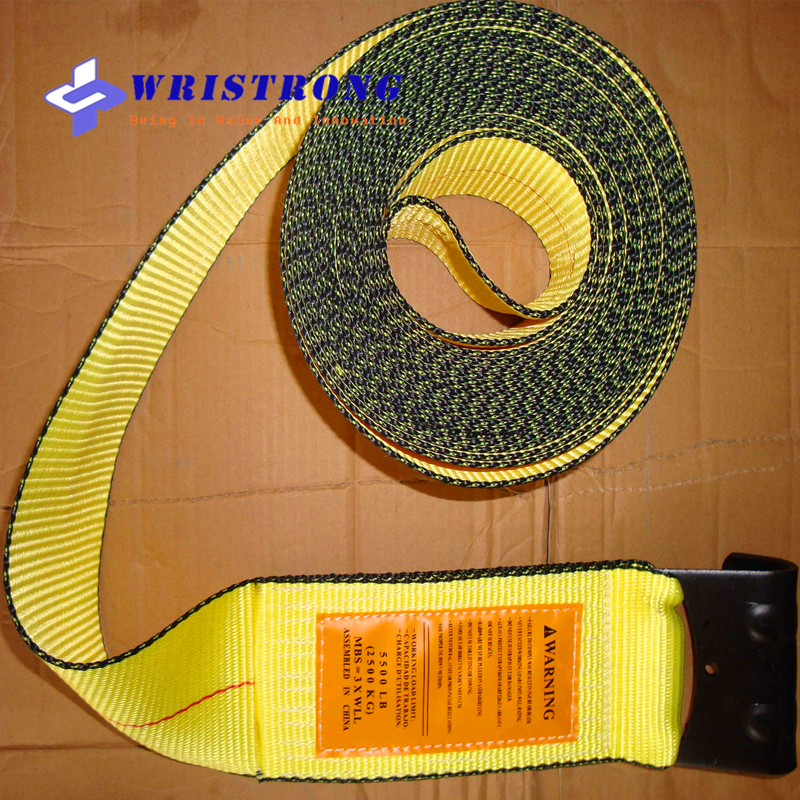

Item Name: 4 Inch Heavy Duty Winch Straps With Flat Hooks.

China H.S Code: 5609000000

Material:Polyester webbing + Mn steel

Hooks: 15,000lbs M.B.S Flat hooks(electrophoresis black or zinc plate yellow )

Webbing belt: 4" wide polyster with M.B.S 20,000lbs

W.L.L of Whole Assembly: 5,500lbs

Safety Factor: 3:1 on whole assembly.

Length: 30' (or As requested)

Color: Yellow with one red stripe middle, two black sides on webbing belt surface.

Standard: ASTM B30.9,WSTDA

Characteristic:Fast tension and release,wearable, factory direct cheap prices.

Package: Carton boxes+pallets

Wristrong China also manufactures winch straps with differnt types of end fittings, you can see the details bellow Ratchet Straps List. The tie down strap can be stenciled with customer's company name or logo,and the color, length,width etc can be made to client's special requirements.

Other Sizes And Different End Fitting For USA Style Ratchet Tie Down Straps and Winch Straps Available From Us As bellow:

1" RATCHET & CAM BUCKLE TIE DOWN STRAPS

ITEM NO.	BUCKLE	LENGTH	END FITTING	M.B.S.
RSFH110	RATCHET	10' or As requested	FLAT HOOK	1,000LBS
CSFH110	CAM	10' As requested	FLAT HOOK	1,000LBS

RSSH110	RATCHET	10' As requested	STAMPED SNAP HOOK	2,100LBS
CSSH110	CAM	10' As requested	STAMPED SNAP HOOK	1,000LBS
RSWH110	RATCHET	10' As requested	DOUBLE J HOOK	2,100LBS
CSWH110	CAM	10' As requested	DOUBLE J HOOK	1,000LBS
RSHK110	RATCHET	10' As requested	HOOK & KEEPER	2,100LBS
CSHK110	CAM	10' As requested	HOOK & KEEPER	1,000LBS
RSOH110	RATCHET	10' As requested	S HOOK (Vinyl Coated or Zinc Plated)	2,100LBS
CSOH110	CAM	10' As requested	S HOOK (Vinyl Coated or Zinc Plated)	1,000LBS
RSEL110	RATCHET	10' As requested	ENDLESS	2,100LBS
CSEL110	CAM	10' As requested	ENDLESS	1,000LBS

2" RATCHET TIE DOWN STRAPS

ITEM NO.	STRAP	END FITTING	M.B.S.
RSDJ227	2" X 27'	DOUBLE J HOOK	10,000LBS
RSDJ230	2" X 30'
RSFH227	2" X 27'	FLAT HOOK	10,000LBS
RSFH230	2" X 30'
RSGH227	2" X 27'	CHAIN GRAB HOOK	10,000LBS
RSGH230	2" X 30'
RSSH227	2" X 27'	TWISTED SNAP HOOK	10,000LBS
RSSH230	2" X 30'
RSCH227	2" X 27'	CHAIN ANCHOR ASSEMBLIES	10,000LBS
RSCH230	2" X 30'
RSDR227	2" X 27'	DELTA RING	10,000LBS
RSDR230	2" X 30'
RSLFH227	2" X 27'	FLAT HOOK	5,000LBS
RSLFH230	2" X 30'
RSLDR227	2" X 27'	DELTA RING	5,000LBS
RSLDR230	2" X 30'

2" LOGISTIC TIE DOWN STRAPS

ITEM NO.	STRAP	END FITTING	BUCKLE	M.B.S.
WLRB212	2" X12'	E Track Fitting	RATCHET	3,000LBS
WLRB216	2" X16'
WERB212	2" X12'	3 Piece End Fitting	RATCHET	3,000LBS
WERB216	2" X16'
WLCB212	2" X12'	E Track Fitting	CAM BUCKLE	2,500LBS
WLCB216	2" X16'
WBCB212	2" X12'	Butterfly Fitting	CAM BUCKLE	1,250LBS
WBCB216	2" X16'

3" /4" RATCHET TIE DOWN STRAPS

ITEM	STRAP	END FITTING	M.B.S.
RSDJ327	3" X 27'	DOUBLE J HOOK	15,000LBS
RSDJ430	4" X 30'
RSFH327	3" X 27'	FLAT HOOK	15,000LBS
RSFH430	4" X 30'
RSGH327	3" X 27'	CHAIN GRAB HOOK	15,000LBS
RSGH430	4" X 30'
RSCH327	3" X 27'	CHAIN ANCHOR ASSEMBLIES	15,000LBS
RSCH430	4" X 30'
RSFT327	3" X 27'	FORGED TRIANGLE	15,000LBS
RSFT430	4" X 30'

WINCH STRAP

ITEM NO.	STRAP	END FITTING	M.B.S.
WSFH227	2" X 27'	FLAT HOOK	10,000LBS
WSFH230	2" X 30'
WSFH327	3" X 27'	FLAT HOOK	12,000LBS
WSFH330	3" X 30'
WSFH427	4" X 27'	FLAT HOOK	15,000LBS
WSFH430	4" X 30'
WSFT327	3" X 27'	FORGED TRIANGLE	12,000LBS
WSFT330	3" X 30'
WSFT427	4" X 27'	FORGED TRIANGLE	15,000LBS
WSFT430	4" X 30'
WSGH327	3" X 27'	CHAIN GRAB HOOK	12,000LBS
WSGH330	3" X 30'
WSGH427	4" X 27'	CHAIN GRAB HOOK	15,000LBS
WSGH430	4" X 30'
WSCH327	3" X 27'	CHAIN ANCHOR ASSY	12,000LBS
WSCH330	3" X 30'
WSCH427	4" X 27'	CHAIN ANCHOR ASSY	15,000LBS
WSCH430	4" X 30'
WSDJ327	3" X 27'	DOUBLE J HOOK	12,000LBS
WSDJ330	3" X 30'
WSDJ427	4" X 27'	DOUBLE J HOOK	15,000LBS
WSDJ430	4" X 30'
WSSE327	3" X 27'	SEWN EYE	12,000LBS
WSSE330	3" X 30'
WSSE427	4" X 27'	SEWN EYE	15,000LBS
WSSE430	4" X 30'

TOW STRAP

ITEM NO.	STRAP	END FITTING	M.B.S.
TSHH220	2" X 20'	EYE HOOK	10,000LBS
TSEE220	2" X 20'	FLAT EYE	10,000LBS
TSEE320	3" X 20'		13,000LBS
TSEE420	4" X 20'		15,000LBS
