Winch Strap With Chain Extension

Home > Winch Strap With Chain Extension

Winch Strap With Chain Extension

Please Note:

If you have any special requirements, you can contact us bellow and we will reply you as soon as possible.

Request A Quote

Product Specification:

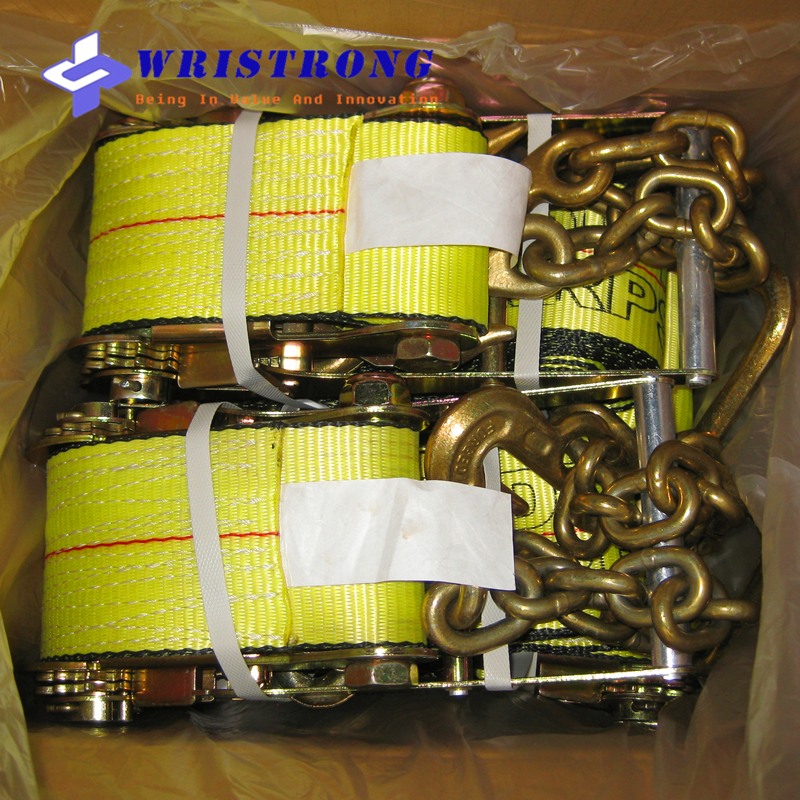

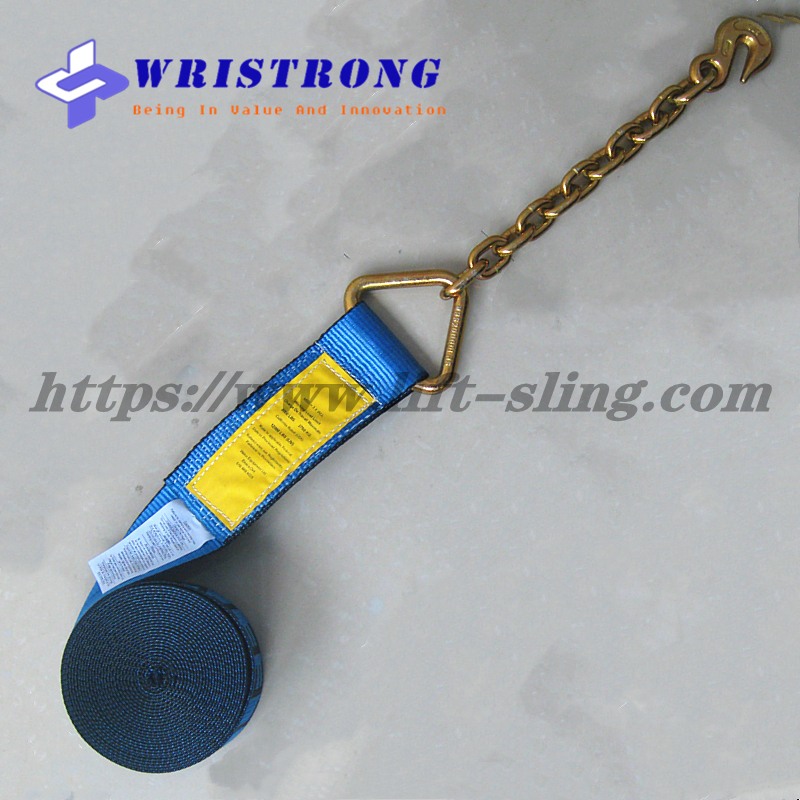

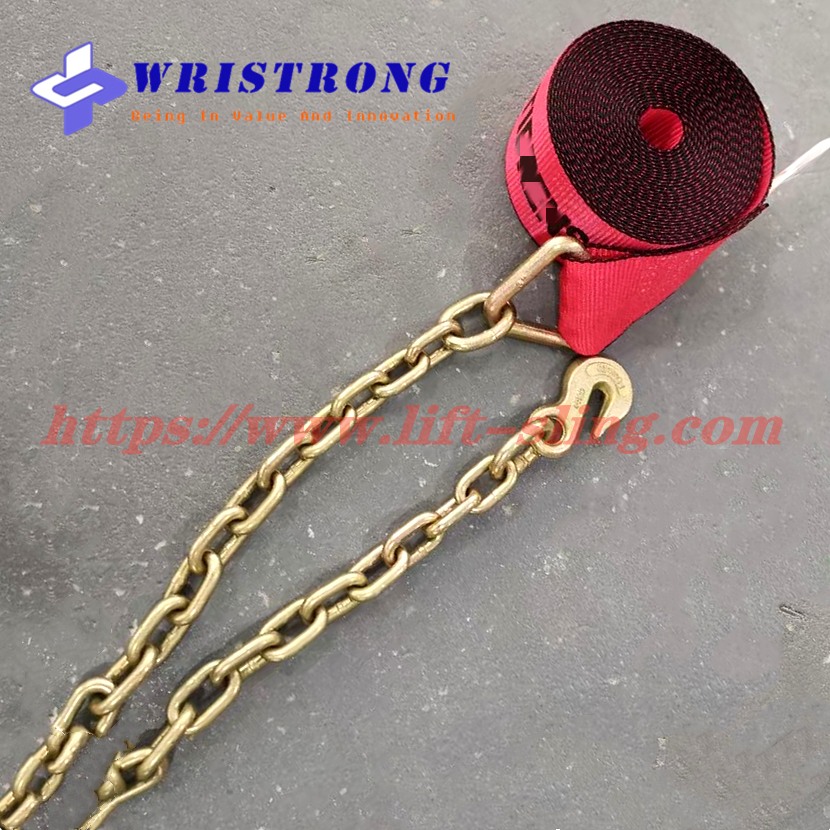

Winch Strap With Chain Extension | China Wristrong Supplying

The 2"-4" wide heavy duty winch straps with chain extensions are the replacement of loose end (long end) of normal 2"-4" wide ratchet strap with chain extension. And generally these winch straps are used onto the truck winches or boat winches, both in manual or electric powered.  China Wristrong also supplys a wide range of  Truck Winches and Boat Winches for your one-stop purchase.

Wristrong provides variety of different lengths, widths and end fittings to accommodate all different types of transportation security,  Wristrong Winch Straps are equipped with strong and durable end fittings that fastly and easily hook onto the anchor points, creating a strong and reliable grip . The end fittings available from us are Flat Hooks, Wire Hooks, Chain Anchors, Delta Rings as well as Stitched Loops that work together with both the webbing belt and the tensioning winches to tie down and stabilize your cargo transporation. You can see all these in  Ratchet Straps List bellow.

The standard work load limit(W.L.L) for 4"  winch strap with chain extension is 5,500LBS, some ones also will rate as 5,400LBS, with the actual whole assembly minium break strength (M.B.S) at 15,000LBS and webbing belt M.B.S at 20,000LBS. Detailed Techincal data go as follows.

Description Of  4" Winch Strap With Chain Extension:

Item Name: 4" Winch Strap With Chain Extension

China H.S Code: 5609000000

Material:Polyester webbing + alloy steel

Hooks: 15,000lbs M.B.S chain extension (electrophoresis black or zinc plate yellow )

Webbing belt: 4" wide polyster with M.B.S 20,000lbs

W.L.L of Whole Assembly: 5,500lbs

Safety Factor: 3:1 on whole assembly.

Length: 30' (or As requested)

Color: Yellow, Blue, Red,etc.

Standard: ASTM B30.9,WSTDA

Characteristic:Fast tension and release,wearable, factory direct cheap prices.

Package: Carton boxes+pallets

Wristrong China also manufactures winch straps with differnt types of end fittings, you can see the details bellow Ratchet Straps List. The tie down strap can be stenciled with customer's company name or logo,and the color, length,width etc can be made to client's special requirements.

Other Sizes And Different End Fitting For USA Style Ratchet Tie Down Straps and Winch Straps Available From Us As bellow:



1" RATCHET & CAM BUCKLE TIE DOWN STRAPS


ratchet-strap-flat-hook ITEM NO. BUCKLE LENGTH END FITTING M.B.S.
RSFH110 RATCHET 10' or As requested FLAT HOOK 1,000LBS
CSFH110 CAM 10' As requested 1,000LBS
Ratchet-strap-spring-hook
RSSH110 RATCHET 10' As requested STAMPED SNAP HOOK 2,100LBS
CSSH110 CAM 10' As requested 1,000LBS
Ratchet strap double J hook RSWH110 RATCHET 10' As requested DOUBLE J HOOK 2,100LBS
CSWH110 CAM 10' As requested 1,000LBS
ratchet strap swan hook RSHK110 RATCHET 10' As requested HOOK & KEEPER 2,100LBS
CSHK110 CAM 10' As requested 1,000LBS
ratchet strap S hook RSOH110 RATCHET 10' As requested S HOOK (Vinyl Coated  or Zinc Plated) 2,100LBS
CSOH110 CAM 10' As requested 1,000LBS
cambuckle strap RSEL110 RATCHET 10' As requested ENDLESS 2,100LBS
CSEL110 CAM 10' As requested 1,000LBS


2" RATCHET TIE DOWN STRAPS

  ​
ratchet strap double J hook ITEM NO. STRAP END FITTING M.B.S.
RSDJ227 2" X 27' DOUBLE J HOOK 10,000LBS
RSDJ230 2" X 30'
ratchet strap flat hook RSFH227 2" X 27' FLAT HOOK 10,000LBS
RSFH230 2" X 30'
ratchet strap with chain grab hook RSGH227 2" X 27' CHAIN GRAB HOOK 10,000LBS
RSGH230 2" X 30'
ratchet strap snap hook RSSH227 2" X 27' TWISTED SNAP HOOK 10,000LBS
RSSH230 2" X 30'
ratchet strap chain extension RSCH227 2" X 27' CHAIN ANCHOR ASSEMBLIES 10,000LBS
RSCH230 2" X 30'
ratchet-strap-with-delta-ring RSDR227 2" X 27' DELTA RING 10,000LBS
RSDR230 2" X 30'
ratchet strap with flat hook RSLFH227 2" X 27' FLAT HOOK 5,000LBS
RSLFH230 2" X 30'
ratchet-strap-with-delta-ring RSLDR227 2" X 27' DELTA RING 5,000LBS
RSLDR230 2" X 30'


2" LOGISTIC TIE DOWN STRAPS


Logistic-Strap-Tie-Down-with-spring-hook ITEM NO. STRAP END FITTING BUCKLE M.B.S.
WLRB212 2" X12' E Track Fitting RATCHET   3,000LBS
WLRB216 2" X16'
WERB212 2" X12' 3 Piece End Fitting RATCHET 3,000LBS
WERB216 2" X16'
WLCB212 2" X12' E Track Fitting CAM BUCKLE 2,500LBS
WLCB216 2" X16'
Logistic-Strap-Tie-Down-endless WBCB212 2" X12' Butterfly Fitting CAM BUCKLE 1,250LBS
WBCB216 2" X16'


3" /4" RATCHET TIE DOWN STRAPS

  ​
heavy-duty-ratchet-tie-down-with-double-J-hook ITEM STRAP END FITTING M.B.S.
RSDJ327 3" X 27' DOUBLE J HOOK 15,000LBS
RSDJ430 4" X 30'
heavy-duty-ratchet-tie-down-with-flat-hook RSFH327 3" X 27' FLAT HOOK 15,000LBS
RSFH430 4" X 30'
heavy-duty-ratchet-tie-down-with-grab-hook RSGH327 3" X 27' CHAIN GRAB HOOK 15,000LBS
RSGH430 4" X 30'
heavy-duty-ratchet-tie-down-with-Chain-extension RSCH327 3" X 27' CHAIN ANCHOR ASSEMBLIES 15,000LBS
RSCH430 4" X 30'
heavy-duty-ratchet-tie-down-with-delta-hook RSFT327 3" X 27' FORGED TRIANGLE 15,000LBS
RSFT430 4" X 30'


WINCH STRAP


Winch-strap-with-flat-hook ITEM NO. STRAP END FITTING M.B.S.
WSFH227 2" X 27' FLAT HOOK 10,000LBS
WSFH230 2" X 30'
Winch-strap-with-flat-hook WSFH327 3" X 27' FLAT HOOK 12,000LBS
WSFH330 3" X 30'
WSFH427 4" X 27' FLAT HOOK 15,000LBS
WSFH430 4" X 30'
Winch-strap-with-delta-hook WSFT327 3" X 27' FORGED TRIANGLE 12,000LBS
WSFT330 3" X 30'
WSFT427 4" X 27' FORGED TRIANGLE 15,000LBS
WSFT430 4" X 30'
Winch-strap-with-grab-hook WSGH327 3" X 27' CHAIN GRAB HOOK 12,000LBS
WSGH330 3" X 30'
WSGH427 4" X 27' CHAIN GRAB HOOK 15,000LBS
WSGH430 4" X 30'
Winch-strap-with-chain-extension WSCH327 3" X 27' CHAIN ANCHOR ASSY 12,000LBS
WSCH330 3" X 30'
WSCH427 4" X 27' CHAIN ANCHOR ASSY 15,000LBS
WSCH430 4" X 30'
Winch-strap-with-double-J-hook WSDJ327 3" X 27' DOUBLE J HOOK 12,000LBS
WSDJ330 3" X 30'
WSDJ427 4" X 27' DOUBLE J HOOK 15,000LBS
WSDJ430 4" X 30'
Winch-strap-with-stitched-end WSSE327 3" X 27' SEWN EYE 12,000LBS
WSSE330 3" X 30'
WSSE427 4" X 27' SEWN EYE 15,000LBS
WSSE430 4" X 30'


TOW STRAP


tow-strap-with-grab-hook
ITEM NO. STRAP END FITTING M.B.S.
TSHH220 2" X 20' EYE HOOK 10,000LBS
tow-strap-with-stitched-eye TSEE220 2" X 20' FLAT EYE 10,000LBS
TSEE320 3" X 20' 13,000LBS
TSEE420 4" X 20' 15,000LBS

For Truck Winches and Boat Winches, Please refer to the Links Bellow:

☞Truck Hand Winches & Winch Bars


☞Hand Winches Boat Winch & Manual Winches
