Product Specification:

Endless Webbing Slings | Endless Sling | China Wirstrong Supply

Endless webbing slings are used as industrial lifting slings to handle steel tubes, HDPE liners, woods, granites,etc. These slings are very flexible to use, can be single or double layers to double the lifting capacity. Wristrong China has a wide variety endless webbing slings availabe: From 1Ton-8Ton, and if the customer would like to accept double layers webbings, we can even make the slings into 16Ton at safety factor 7:1. In addition, these polyester industrial lifting slings are also made into safety factor of 5:1, 4:1, or even 3:1, as single use one way slings.These single use lifting slings could be saved by a lot for the customers when the lifting slings will be deserted at end of the serving process.  Australian Webbing Slings standard AS 1353.1-1997 with safety factor of 8:1 is alos available from us.

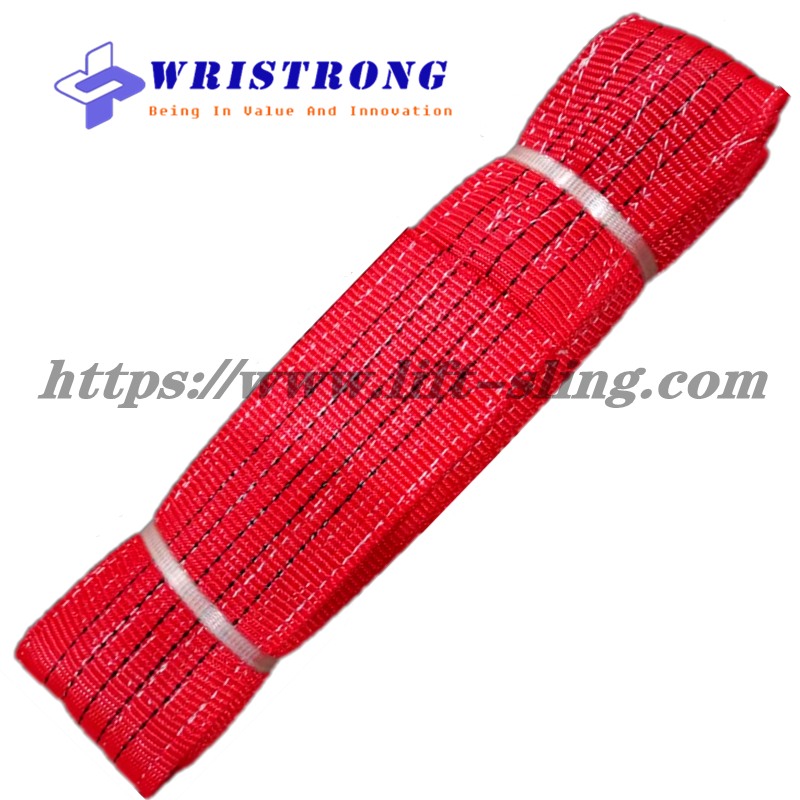

The Specification of  W.L.L 5 Tonne endless webbing slings go as follows:

-Manufactured to Machine Directive 2006/42/EC & EN1492-1

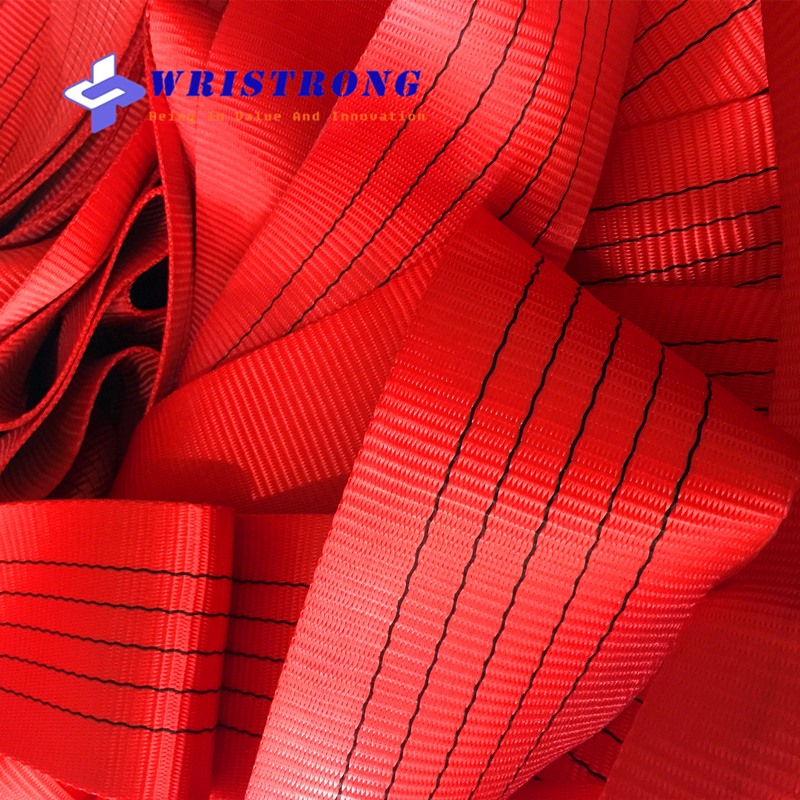

-Colour: Red with three five stripes on the webbing belt surface.

-W.L.L: 5Tonne/5000KGS

-Safety Factor: 7:1, and safety factor 5:1 and 6:1 for one way lifting slings are also available. Safety factor 8:1 to AS 1353.1-1997 available too.

-Width: 150mm

-Length choices availabe.

-SGS Tensile strength test report available on request

-Made from 100% AAA Grade well-selected polyester yarn

-Real Break strength always exceeds that in theory.

-With protective sleeve also available on request.

-One Year Quality Warranty On Factory Defects

-Free Sample available on the endless webbing slings W.L.L under 8Ton

-Traceable labels available on request.

-Factory test certificate for each sling

-Competitive prices-manufactuer directly.

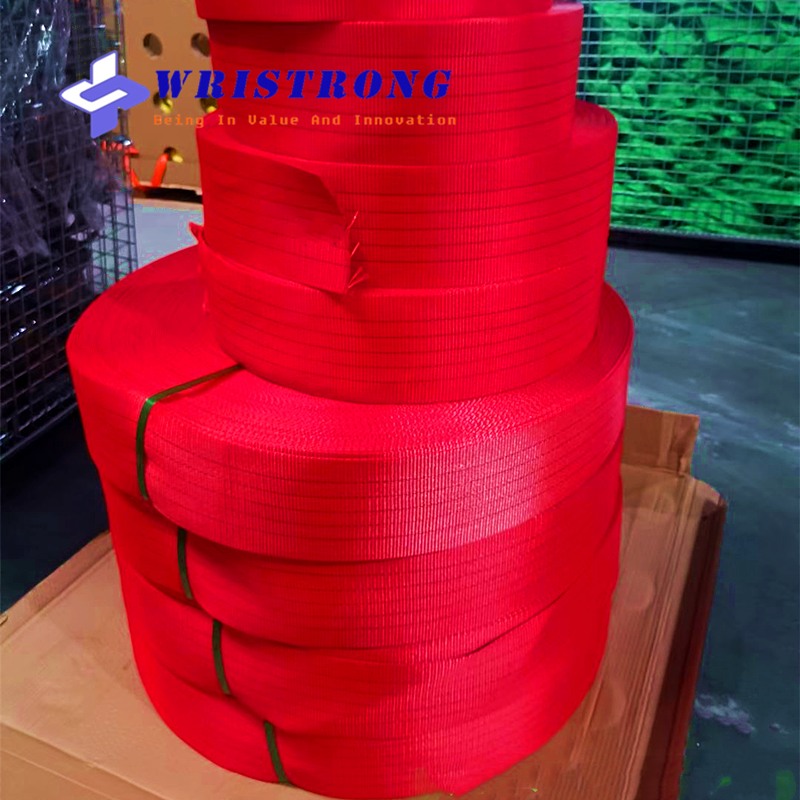

Endless Webbing sling is one of Wristrong's major products. We also call it endless polyester lifting slings as usually it is made from polyester, all Wristrong endless webbings slings are made from high break strength industrial polyester yarn , produced and tested in accordance to EN 1492-1 and AS 1353.1-1997.
